SKU: NKIB5912-EU

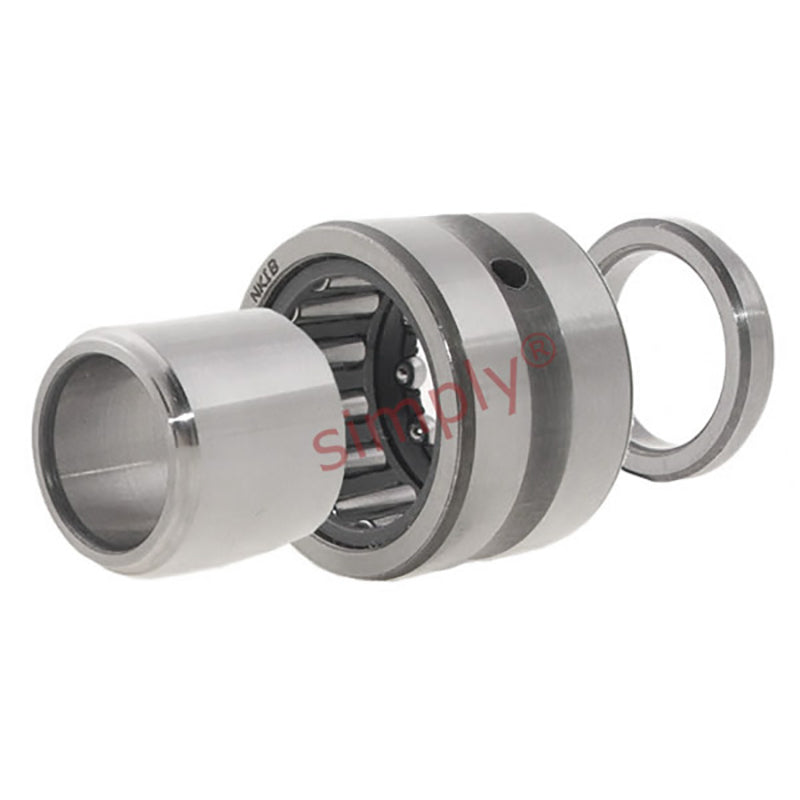

NKIB5912 Budget Needle Roller / Angular Contact Ball Bearing 60x85x38mm
NKIB5912 Budget Needle Roller / Angular Contact Ball Bearing 60x85x38mm
Regular price
$174.90
ex VAT
Regular price
Sale price
$174.90
ex VAT
In stock
Price Break
10+
$117.15
19+
$110.57
29+
$109.25
39+
$107.93
49+
$106.62
74+
$105.30
99+
$98.72
199+
$97.40
249+
$96.09
499+
$94.77
999+
$92.14
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 38mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| B | 38mm |
| C | 34mm |
| Radial dynamic load | 59400 N |
| Radial static load | 114000 N |
| Axial dynamic load | 9580 N |
| Axial static load | 18000 N |
| Fatigue load limit radial Pu | 14300 N |
| Fatigue load limit axial Pu | 770 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 1mm |
| da min | 65mm |
| Da max | 80mm |
| ra max | 1mm |
| Weight | 600 g |
