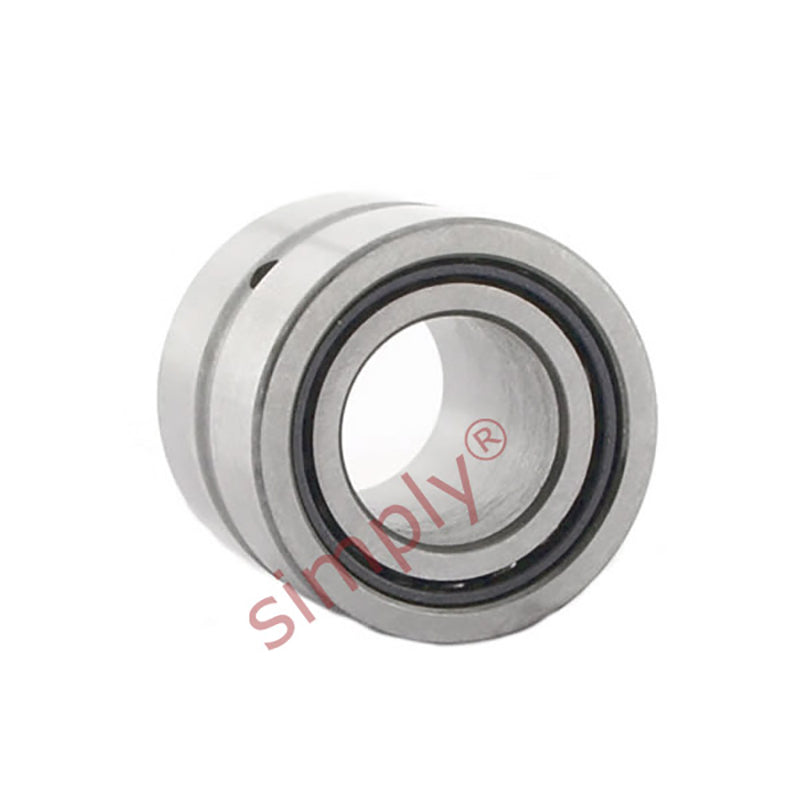

• Major Brand NKIS20 Needle Roller Bearing With Shaft Sleeve 20x42x20mm
1 1

SKU: NKIS20-MB

Major Brand NKIS20 Needle Roller Bearing With Shaft Sleeve 20x42x20mm

Major Brand NKIS20 Needle Roller Bearing With Shaft Sleeve 20x42x20mm
$60.28 ex VAT
$60.28 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.38
19+ $38.11
29+ $37.66
39+ $37.21
49+ $36.75
74+ $36.30
99+ $34.03
199+ $33.58
249+ $33.12
499+ $32.67
999+ $31.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
42mm
Width:
20mm
Technical
d 20mm
D 42mm
B 20mm
Dynamic load 28600 N
Static load 39000 N
Fatigue load limit Pu 5000 N
Speed in grease 8500 rpm
Speed in oil 13000 rpm
F 28mm
r1r2 0.6mm
S (axial disp) 0.5mm
da min 24mm
Da max 38mm
ra max 0.6mm
