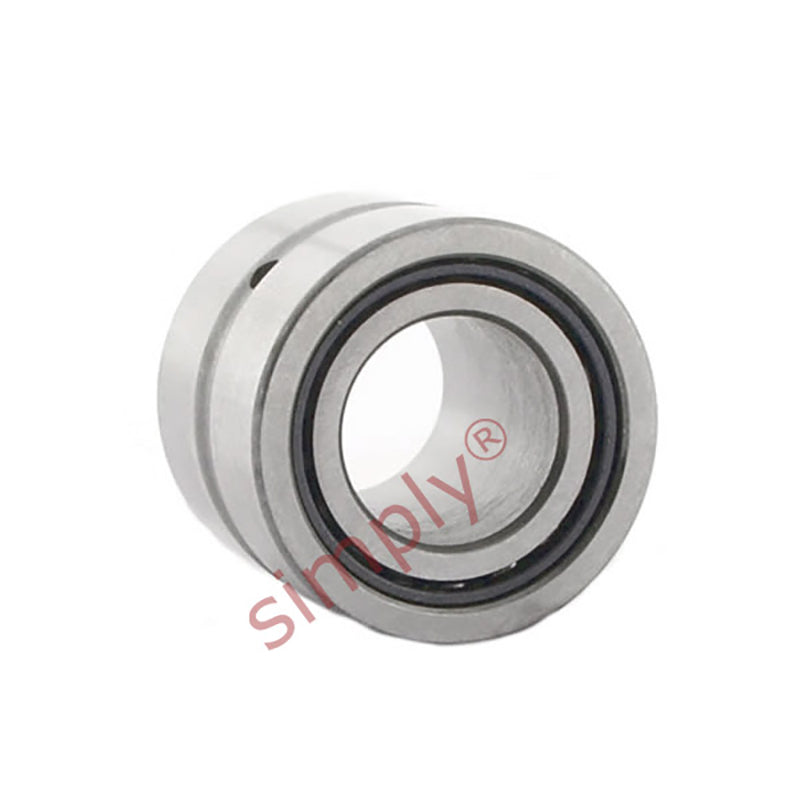

• Major Brand NKIS25 Needle Roller Bearing With Shaft Sleeve 25x47x22mm
1 1

SKU: NKIS25-MB

Major Brand NKIS25 Needle Roller Bearing With Shaft Sleeve 25x47x22mm

Major Brand NKIS25 Needle Roller Bearing With Shaft Sleeve 25x47x22mm
$60.97 ex VAT
$60.97 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.84
19+ $38.55
29+ $38.09
39+ $37.63
49+ $37.17
74+ $36.71
99+ $34.42
199+ $33.96
249+ $33.50
499+ $33.04
999+ $32.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
25mm
Outside Diameter:
47mm
Width:
22mm
Technical
d 25mm
D 47mm
B 22mm
Dynamic load 34100 N
Static load 46500 N
Fatigue load limit Pu 6000 N
Speed in grease 8000 rpm
Speed in oil 12000 rpm
F 32mm
r1r2 0.6mm
S (axial disp) 1mm
da min 29mm
Da max 43mm
ra max 0.6mm
