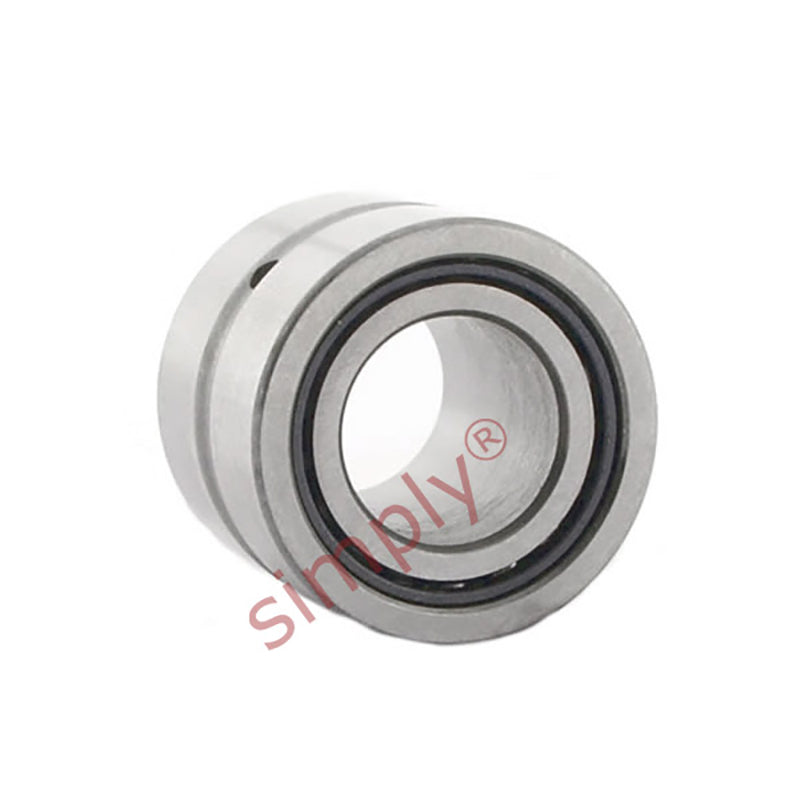

• NKIS30 Budget Needle Roller Bearing / Shaft Sleeve 30x52x22mm
1 1

SKU: NKIS30-EU

NKIS30 Budget Needle Roller Bearing / Shaft Sleeve 30x52x22mm

NKIS30 Budget Needle Roller Bearing / Shaft Sleeve 30x52x22mm
$47.34 ex VAT
$47.34 ex VAT
Sale Sold out

In stock

Price Break
10+ $31.71
19+ $29.93
29+ $29.57
39+ $29.22
49+ $28.86
74+ $28.50
99+ $26.72
199+ $26.37
249+ $26.01
499+ $25.65
999+ $24.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
52mm
Width:
22mm
Technical
d 30mm
D 52mm
B 22mm
Dynamic load C 36000 N
Static load Co 54000 N
Fatigue load limit Pu 6950 N
Speed in grease 7000 rpm
Speed in oil 10000 rpm
F 37mm
r1r2 0.6mm
S (axial disp) 1mm
da min 34mm
Da max 48mm
ra max 0.6mm
