• Major Brand NKIS40 Needle Roller Bearing With Shaft Sleeve 40x65x22mm
1 1

SKU: NKIS40-MB

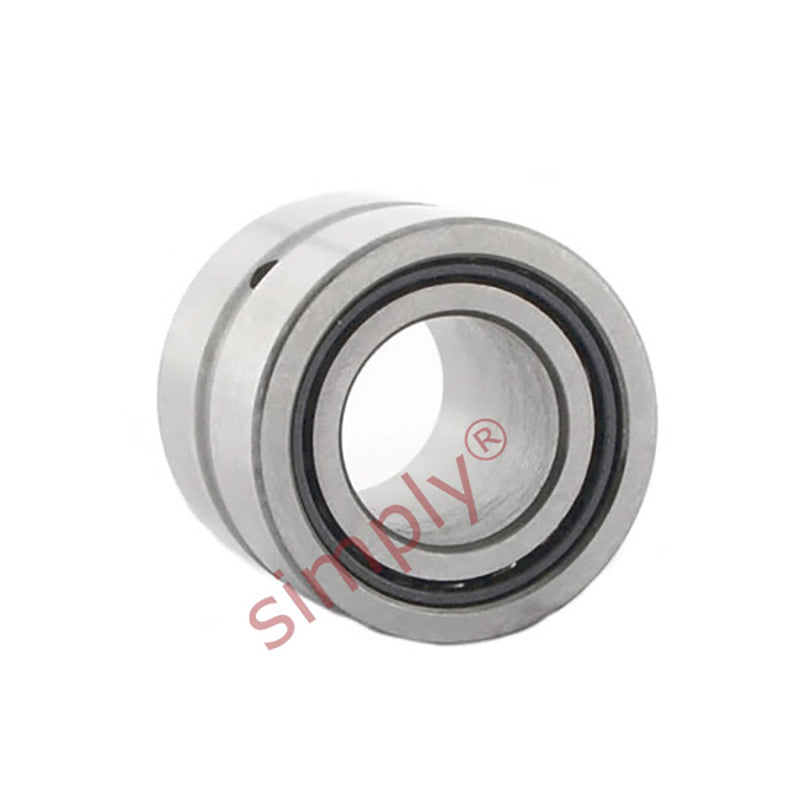

Major Brand NKIS40 Needle Roller Bearing With Shaft Sleeve 40x65x22mm

Major Brand NKIS40 Needle Roller Bearing With Shaft Sleeve 40x65x22mm
$84.69 ex VAT
$84.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $56.72
19+ $53.54
29+ $52.90
39+ $52.26
49+ $51.63
74+ $50.99
99+ $47.80
199+ $47.16
249+ $46.53
499+ $45.89
999+ $44.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
40mm
Outside Diameter:
65mm
Width:
22mm
Technical
d 40mm
D 65mm
B 22mm
Dynamic load 42900 N
Static load 72000 N
Fatigue load limit Pu 9150 N
Speed in grease 5600 rpm
Speed in oil 8000 rpm
F 50mm
r1r2 1mm
S (axial disp) 0.5mm
da min 45mm
Da max 60mm
ra max 1mm
