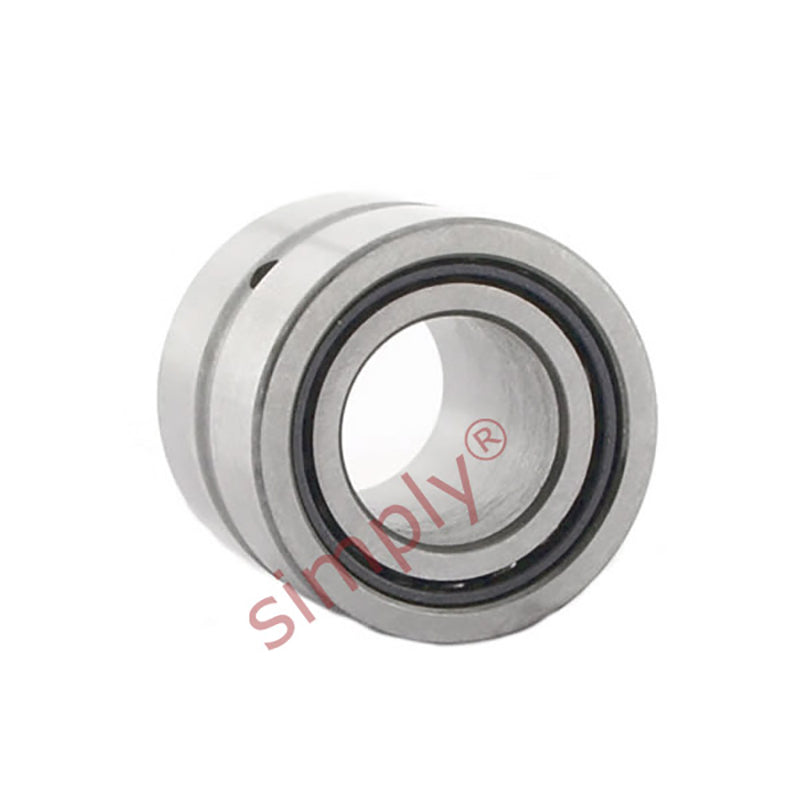

• NKIS50 Budget Needle Roller Bearing / Shaft Sleeve 50x80x28mm
1 1

SKU: NKIS50-EU

NKIS50 Budget Needle Roller Bearing / Shaft Sleeve 50x80x28mm

NKIS50 Budget Needle Roller Bearing / Shaft Sleeve 50x80x28mm
$70.30 ex VAT
$70.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.09
19+ $44.45
29+ $43.92
39+ $43.39
49+ $42.86
74+ $42.33
99+ $39.69
199+ $39.16
249+ $38.63
499+ $38.10
999+ $37.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
80mm
Width:
28mm
Technical
d 50mm
D 80mm
B 28mm
Dynamic load C 62700 N
Static load Co 104000 N
Fatigue load limit Pu 13700 N
Speed in grease 4500 rpm
Speed in oil 6300 rpm
F 60mm
r1r2 1.1mm
S (axial disp) 2mm
da min 56.5mm
Da max 73.5mm
ra max 1mm
