• Major Brand NKIS50 Needle Roller Bearing With Shaft Sleeve 50x80x28mm
1 1

SKU: NKIS50-MB

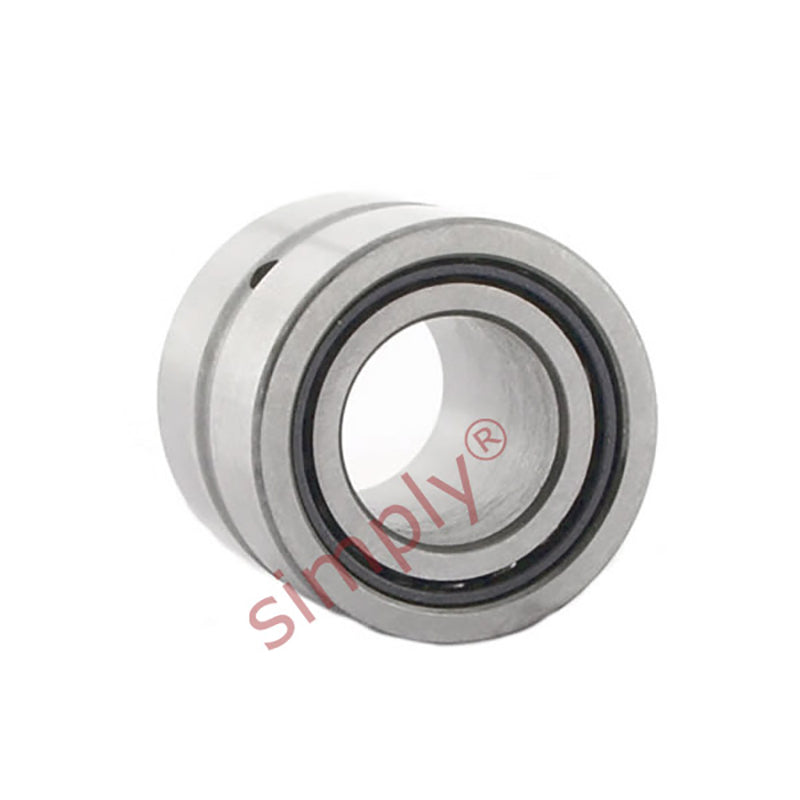

Major Brand NKIS50 Needle Roller Bearing With Shaft Sleeve 50x80x28mm

Major Brand NKIS50 Needle Roller Bearing With Shaft Sleeve 50x80x28mm
$87.88 ex VAT
$87.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $58.87
19+ $55.56
29+ $54.90
39+ $54.24
49+ $53.58
74+ $52.91
99+ $49.61
199+ $48.95
249+ $48.28
499+ $47.62
999+ $46.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
50mm
Outside Diameter:
80mm
Width:
28mm
Technical
d 50mm
D 80mm
B 28mm
Dynamic load 62700 N
Static load 104000 N
Fatigue load limit Pu 13700 N
Speed in grease 4500 rpm
Speed in oil 6300 rpm
F 60mm
r1r2 1.1mm
S (axial disp) 2mm
da min 56.5mm
Da max 73.5mm
ra max 1mm
