SKU: NKX10TN-EU

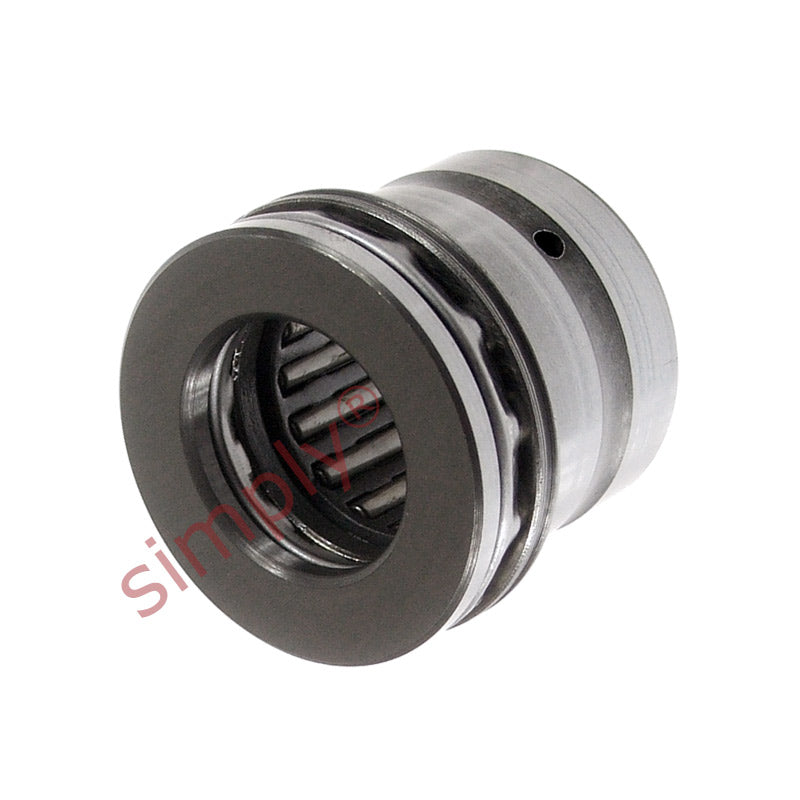

NKX10TN Budget Needle Roller Thrust Ball Bearing Without Cover 10x19x23mm
NKX10TN Budget Needle Roller Thrust Ball Bearing Without Cover 10x19x23mm
Regular price
$26.57
ex VAT
Regular price
Sale price
$26.57
ex VAT
In stock
Price Break
10+
$17.80
19+
$16.80
29+
$16.60
39+
$16.40
49+
$16.20
74+
$16.00
99+
$15.00
199+
$14.80
249+
$14.60
499+
$14.40
999+
$14.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Budget Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 23mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 19mm |
| C | 23mm |
| Radial dynamic load | 5940 N |
| Radial static load | 8000 N |
| Axial dynamic load | 9950 N |
| Axial static load | 15300 N |
| Fatigue load limit radial Pu | 900 N |
| Fatigue load limit axial Pu | 560 N |
| Min load factor | 1.2 |
| Speed in grease | 7000 rpm |
| Speed in oil | 9500 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 10mm |
| d1 | 24mm |
| D1 | 24mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 7mm |
| F | 10mm |
| Bi | 16mm |
| Inner ring | IR7x10x16 |
| Weight | 34 g |
