SKU: NKX12-EU

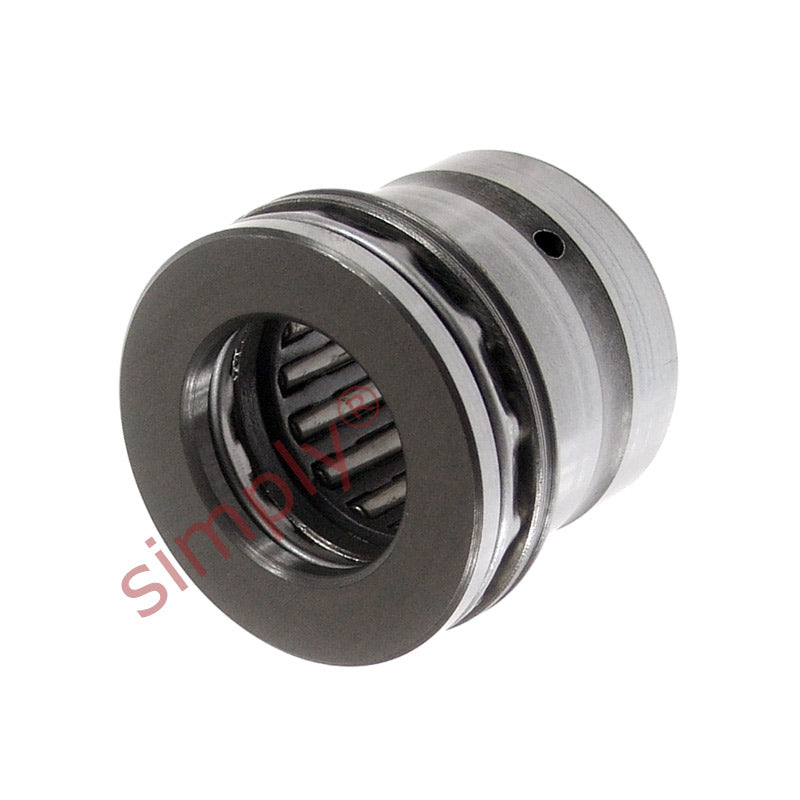

NKX12 Budget Needle Roller Thrust Ball Bearing Without Cover 12x21x23mm

Name: NKX12 Budget Needle Roller Thrust Ball Bearing Without Cover 12x21x23mm
Brand: Gen
SKU: NKX12-EU
Price: 27.32 USD
Availability: InStock

$27.32 ex VAT

Sale Sold out

In stock

Price Break

10+ $18.30

19+ $17.27

29+ $17.06

39+ $16.86

49+ $16.65

74+ $16.45

99+ $15.42

199+ $15.21

249+ $15.01

499+ $14.80

999+ $14.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 21mm
Width:: 23mm

Technical

Fw	12mm
D	21mm
C	23mm
Radial dynamic load	6160 N
Radial static load	8650 N
Axial dynamic load	10400 N
Axial static load	16600 N
Fatigue load limit radial Pu	980 N
Fatigue load limit axial Pu	620 N
Min load factor	1.4
Speed in grease	6700 rpm
Speed in oil	9000 rpm
C1	9mm
C2	6.5mm
d	12mm
d1	26mm
D1	26mm
r1r2 min	0.3mm
da min	21mm
ra max	0.3mm
rb max	0.3mm
di	9mm
F	12mm
Bi	16mm
Inner ring	IR9x12x16
Weight	38 g
