SKU: NKX15-EU

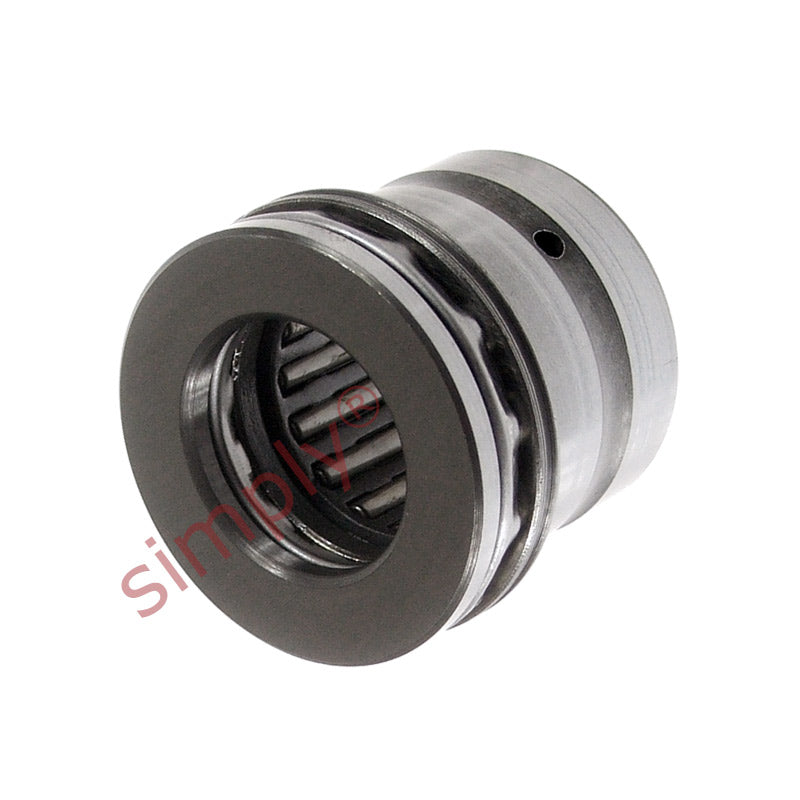

NKX15 Budget Needle Roller Thrust Ball Bearing Without Cover 15x24x23mm

Name: NKX15 Budget Needle Roller Thrust Ball Bearing Without Cover 15x24x23mm
Brand: Gen
SKU: NKX15-EU
Price: 28.27 USD
Availability: InStock

$28.27 ex VAT

Sale Sold out

In stock

Price Break

10+ $18.94

19+ $17.88

29+ $17.67

39+ $17.45

49+ $17.24

74+ $17.03

99+ $15.96

199+ $15.75

249+ $15.54

499+ $15.32

999+ $14.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 23mm

Technical

Fw	15mm
D	24mm
C	23mm
Radial dynamic load	11200 N
Radial static load	14000 N
Axial dynamic load	10600 N
Axial static load	18300 N
Fatigue load limit radial Pu	1660 N
Fatigue load limit axial Pu	670 N
Min load factor	1.7
Speed in grease	6300 rpm
Speed in oil	8500 rpm
C1	9mm
C2	6.5mm
d	15mm
d1	28mm
D1	28mm
r1r2 min	0.3mm
da min	23mm
ra max	0.3mm
rb max	0.3mm
di	12mm
F	15mm
Bi	16mm
Inner ring	IR12x15x16
Weight	44 g
