SKU: NKX15Z-EU

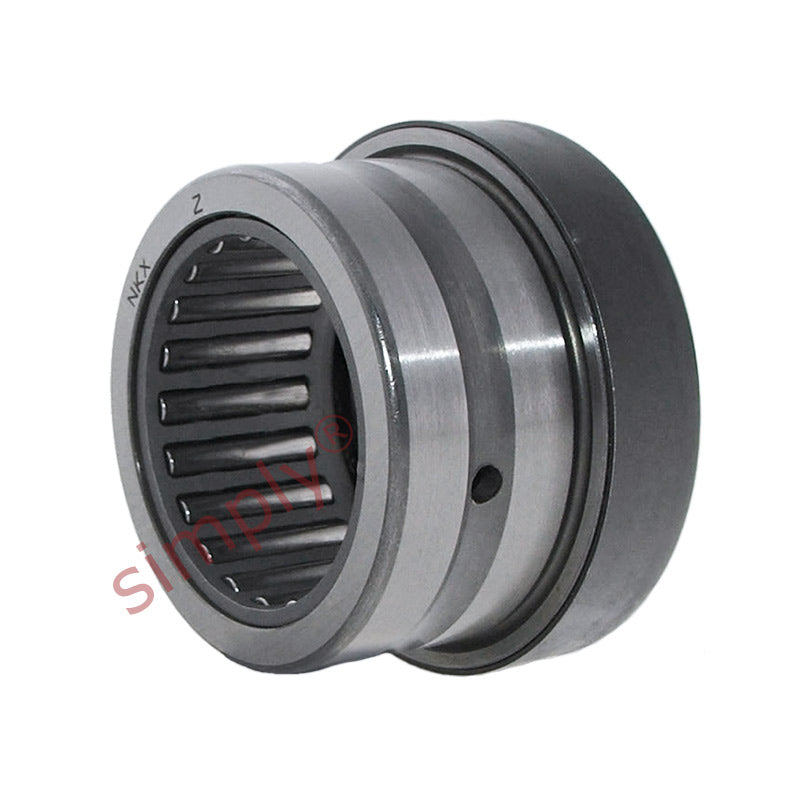

NKX15Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 15x24x23mm

Name: NKX15Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 15x24x23mm
Brand: Gen
SKU: NKX15Z-EU
Price: 30.21 USD
Availability: InStock

$30.21 ex VAT

Sale Sold out

In stock

Price Break

10+ $20.24

19+ $19.10

29+ $18.87

39+ $18.65

49+ $18.42

74+ $18.19

99+ $17.05

199+ $16.83

249+ $16.60

499+ $16.37

999+ $15.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 23mm
Seals / Shields:: Metal Shields

Technical

Fw	15mm
D	24mm
C	23mm
Radial dynamic load	11200 N
Radial static load	14000 N
Axial dynamic load	10600 N
Axial static load	18300 N
Fatigue load limit radial Pu	1660 N
Fatigue load limit axial Pu	670 N
Min load factor	1.7
Speed in grease	6300 rpm
Speed in oil	8500 rpm
C1	9mm
C2	6.5mm
d	15mm
d1	23.7mm
D2	29.2mm
r1r2 min	0.3mm
da min	23mm
db max	23.7mm
ra max	0.3mm
rb max	0.3mm
di	12mm
F	15mm
Bi	16mm
Inner ring	IR12x15x16
Weight	47 g
