SKU: NKX17Z-EU

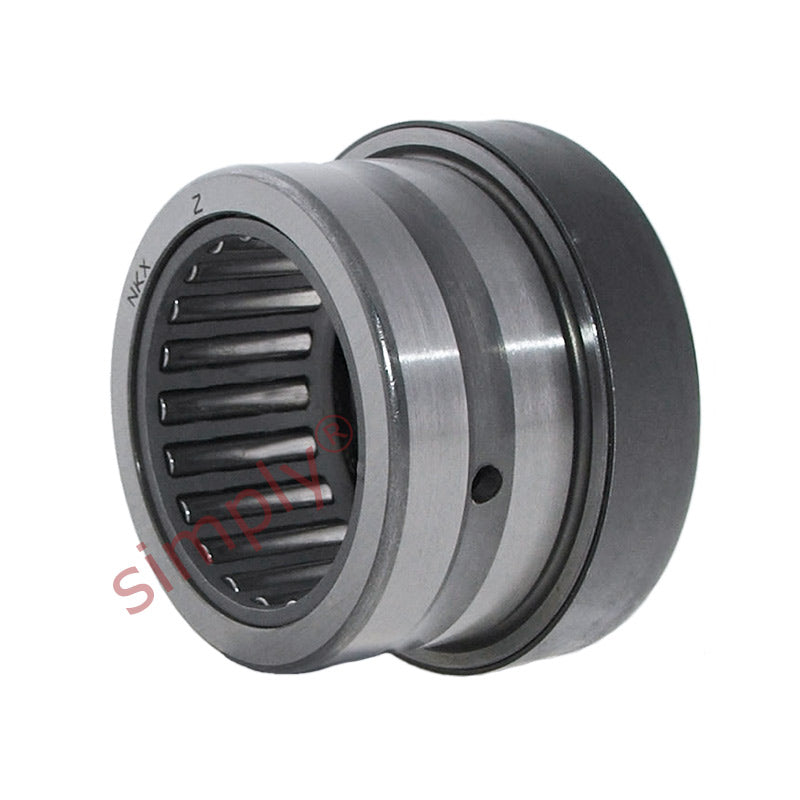

NKX17Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 17x26x25mm

Name: NKX17Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 17x26x25mm
Brand: Gen
SKU: NKX17Z-EU
Price: 31.98 USD
Availability: InStock

$31.98 ex VAT

Sale Sold out

In stock

Price Break

10+ $21.42

19+ $20.22

29+ $19.98

39+ $19.74

49+ $19.50

74+ $19.26

99+ $18.05

199+ $17.81

249+ $17.57

499+ $17.33

999+ $16.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 17mm
Outside Diameter:: 26mm
Width:: 25mm
Seals / Shields:: Metal Shields

Technical

Fw	17mm
D	26mm
C	25mm
Radial dynamic load	12300 N
Radial static load	16600 N
Axial dynamic load	10800 N
Axial static load	19600 N
Fatigue load limit radial Pu	1960 N
Fatigue load limit axial Pu	735 N
Min load factor	2
Speed in grease	6300 rpm
Speed in oil	8500 rpm
C1	9mm
C2	8mm
d	17mm
d1	25.7mm
D2	31.1mm
r1r2 min	0.3mm
da min	25mm
db max	25.7mm
ra max	0.3mm
rb max	0.3mm
di	14mm
F	17mm
Bi	17mm
Inner ring	IR14x17x17
Weight	55 g
