SKU: NKX20-EU

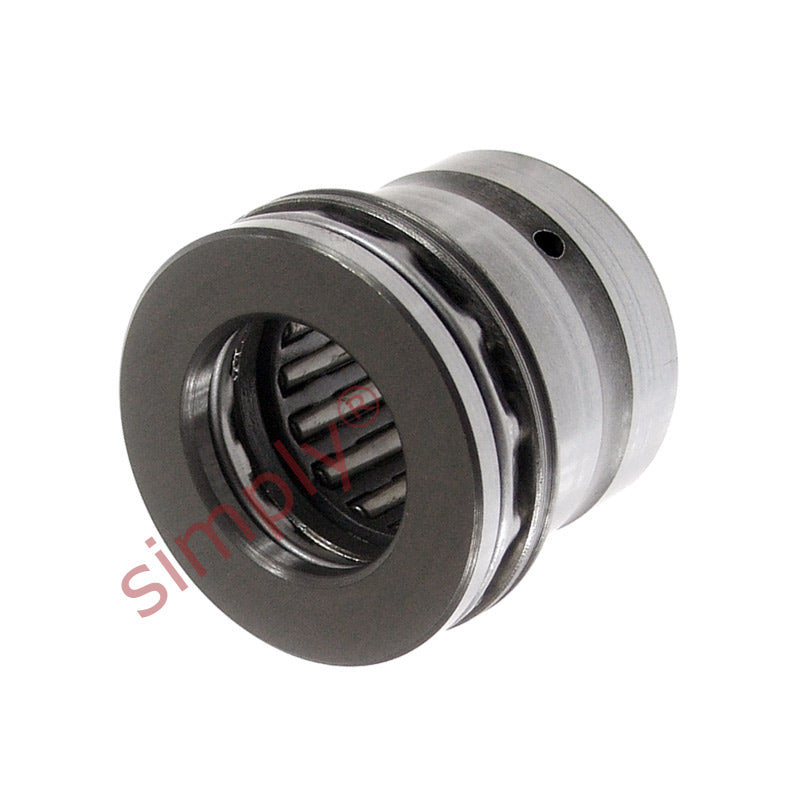

NKX20 Budget Needle Roller Thrust Ball Bearing Without Cover 20x30x30mm

Name: NKX20 Budget Needle Roller Thrust Ball Bearing Without Cover 20x30x30mm
Brand: Gen
SKU: NKX20-EU
Price: 34.31 USD
Availability: InStock

$34.31 ex VAT

Sale Sold out

In stock

Price Break

10+ $22.98

19+ $21.69

29+ $21.43

39+ $21.17

49+ $20.91

74+ $20.65

99+ $19.36

199+ $19.11

249+ $18.85

499+ $18.59

999+ $18.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 20mm
Outside Diameter:: 30mm
Width:: 30mm

Technical

Fw	20mm
D	30mm
C	30mm
Radial dynamic load	16800 N
Radial static load	26000 N
Axial dynamic load	14300 N
Axial static load	27000 N
Fatigue load limit radial Pu	3050 N
Fatigue load limit axial Pu	1000 N
Min load factor	3.8
Speed in grease	5600 rpm
Speed in oil	7500 rpm
C1	10mm
C2	10.5mm
d	20mm
d1	35mm
D1	35mm
r1r2 min	0.3mm
da min	29mm
ra max	0.3mm
rb max	0.3mm
di	17mm
F	20mm
Bi	20mm
Inner ring	IR17x20x20
Weight	83 g
