SKU: NKX20Z-EU

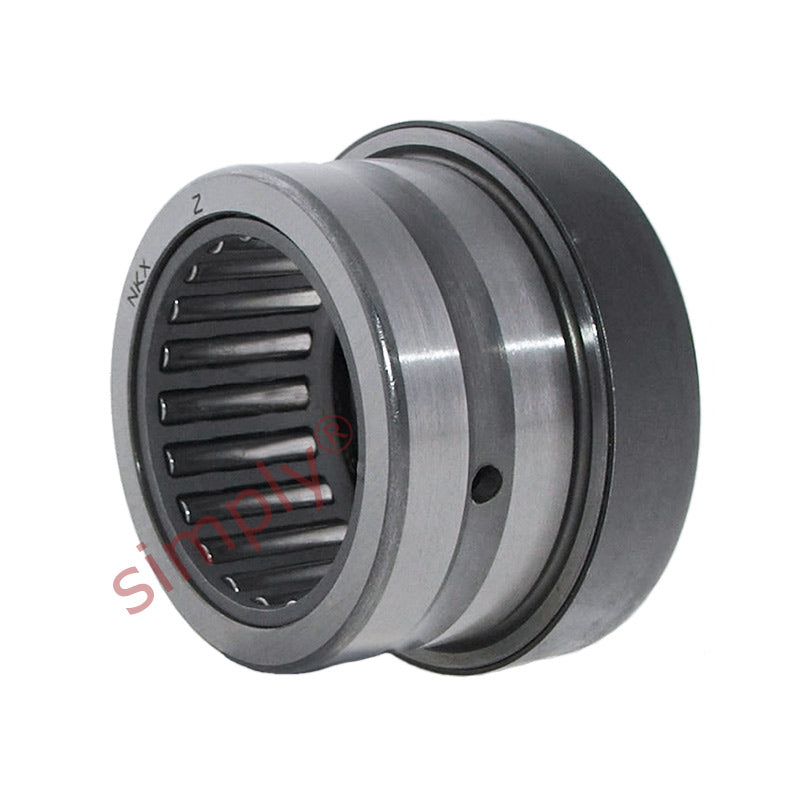

NKX20Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 20x30x30mm

Name: NKX20Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 20x30x30mm
Brand: Gen
SKU: NKX20Z-EU
Price: 37.15 USD
Availability: InStock

$37.15 ex VAT

Sale Sold out

In stock

Price Break

10+ $24.89

19+ $23.49

29+ $23.21

39+ $22.93

49+ $22.65

74+ $22.37

99+ $20.97

199+ $20.69

249+ $20.41

499+ $20.13

999+ $19.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 20mm
Outside Diameter:: 30mm
Width:: 30mm
Seals / Shields:: Metal Shields

Technical

Fw	20mm
D	30mm
C	30mm
Radial dynamic load	16800 N
Radial static load	26000 N
Axial dynamic load	14300 N
Axial static load	27000 N
Fatigue load limit radial Pu	3050 N
Fatigue load limit axial Pu	1000 N
Min load factor	3.8
Speed in grease	5600 rpm
Speed in oil	7500 rpm
C1	10mm
C2	10.5mm
d	20mm
d1	30.7mm
D2	36.2mm
r1r2 min	0.3mm
da min	29mm
db max	30.7mm
ra max	0.3mm
rb max	0.3mm
di	17mm
F	20mm
Bi	20mm
Inner ring	IR17x20x20
Weight	90 g
