SKU: NKX30-EU

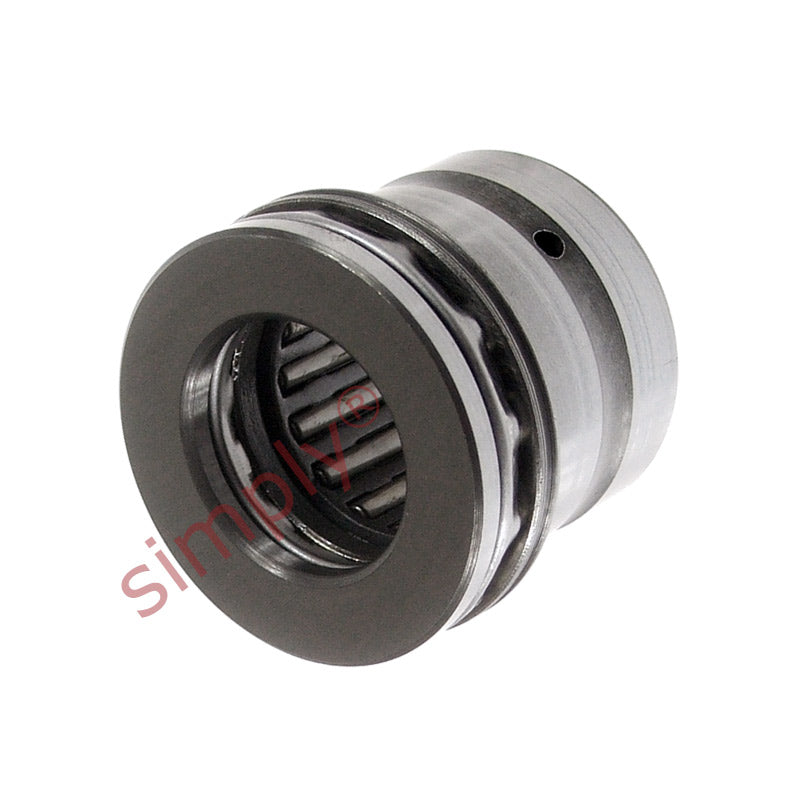

NKX30 Budget Needle Roller Thrust Ball Bearing Without Cover 30x42x30mm

Name: NKX30 Budget Needle Roller Thrust Ball Bearing Without Cover 30x42x30mm
Brand: Gen
SKU: NKX30-EU
Price: 50.15 USD
Availability: InStock

$50.15 ex VAT

Sale Sold out

In stock

Price Break

10+ $33.59

19+ $31.70

29+ $31.32

39+ $30.94

49+ $30.57

74+ $30.19

99+ $28.30

199+ $27.93

249+ $27.55

499+ $27.17

999+ $26.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 42mm
Width:: 30mm

Technical

Fw	30mm
D	42mm
C	30mm
Radial dynamic load	22900 N
Radial static load	39000 N
Axial dynamic load	20300 N
Axial static load	45500 N
Fatigue load limit radial Pu	4800 N
Fatigue load limit axial Pu	1700 N
Min load factor	10
Speed in grease	4500 rpm
Speed in oil	6000 rpm
C1	11mm
C2	9.5mm
d	30mm
d1	47mm
D1	47mm
r1r2 min	0.6mm
da min	40mm
ra max	0.6mm
rb max	0.3mm
di	25mm
F	30mm
Bi	20mm
Inner ring	IR25x30x20
Weight	140 g
