SKU: NKX35-EU

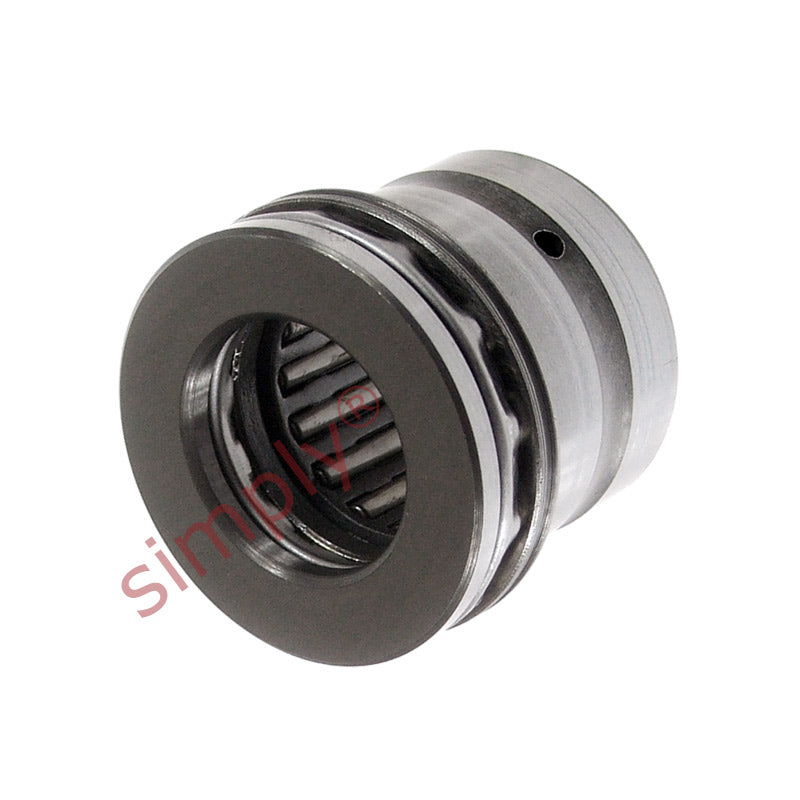

NKX35 Budget Needle Roller Thrust Ball Bearing Without Cover 35x47x30mm

Name: NKX35 Budget Needle Roller Thrust Ball Bearing Without Cover 35x47x30mm
Brand: Gen
SKU: NKX35-EU
Price: 59.65 USD
Availability: InStock

$59.65 ex VAT

Sale Sold out

In stock

Price Break

10+ $39.95

19+ $37.71

29+ $37.26

39+ $36.81

49+ $36.36

74+ $35.91

99+ $33.67

199+ $33.22

249+ $32.77

499+ $32.32

999+ $31.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 35mm
Outside Diameter:: 47mm
Width:: 30mm

Technical

Fw	35mm
D	47mm
C	30mm
Radial dynamic load	24600 N
Radial static load	45000 N
Axial dynamic load	21200 N
Axial static load	51000 N
Fatigue load limit radial Pu	5600 N
Fatigue load limit axial Pu	1900 N
Min load factor	13
Speed in grease	4300 rpm
Speed in oil	5600 rpm
C1	12mm
C2	9mm
d	35mm
d1	52mm
D1	52mm
r1r2 min	0.6mm
da min	45mm
ra max	0.6mm
rb max	0.3mm
di	30mm
F	35mm
Bi	20mm
Inner ring	IR30x35x20
Weight	160 g
