SKU: NKX40-EU

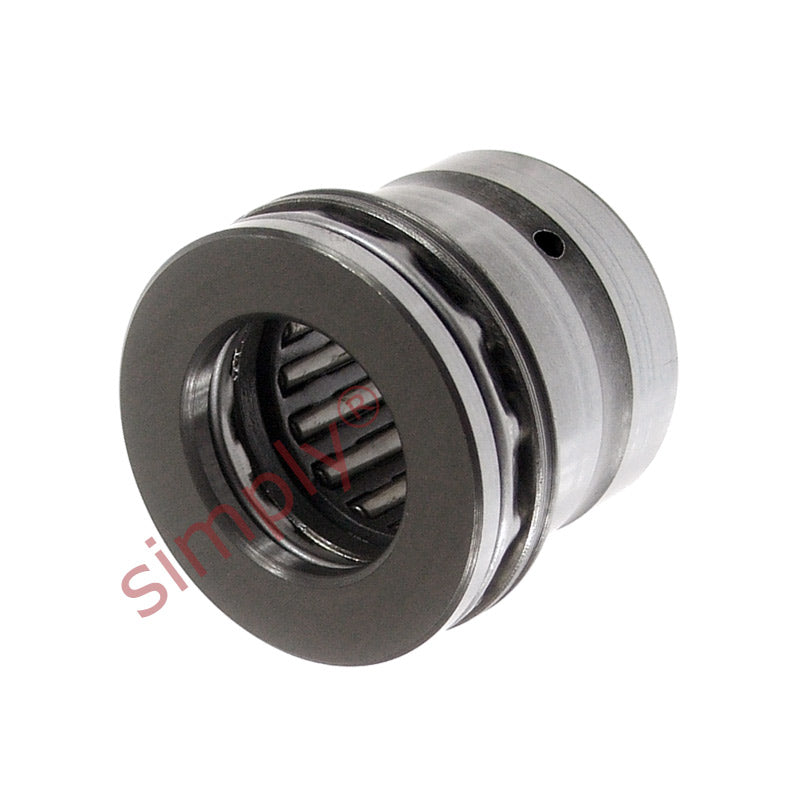

NKX40 Budget Needle Roller Thrust Ball Bearing Without Cover 40x52x32mm

Name: NKX40 Budget Needle Roller Thrust Ball Bearing Without Cover 40x52x32mm
Brand: Gen
SKU: NKX40-EU
Price: 65.58 USD
Availability: InStock

$65.58 ex VAT

Sale Sold out

In stock

Price Break

10+ $43.93

19+ $41.46

29+ $40.97

39+ $40.48

49+ $39.98

74+ $39.49

99+ $37.02

199+ $36.53

249+ $36.03

499+ $35.54

999+ $34.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 40mm
Outside Diameter:: 52mm
Width:: 32mm

Technical

Fw	40mm
D	52mm
C	32mm
Radial dynamic load	26400 N
Radial static load	51000 N
Axial dynamic load	27000 N
Axial static load	68000 N
Fatigue load limit radial Pu	6300 N
Fatigue load limit axial Pu	2550 N
Min load factor	24
Speed in grease	3800 rpm
Speed in oil	5000 rpm
C1	13mm
C2	10mm
d	40mm
d1	60mm
D1	60mm
r1r2 min	0.6mm
da min	52mm
ra max	0.6mm
rb max	0.3mm
di	35mm
F	40mm
Bi	20mm
Inner ring	IR35x40x20
Weight	200 g
