SKU: NKX45-EU

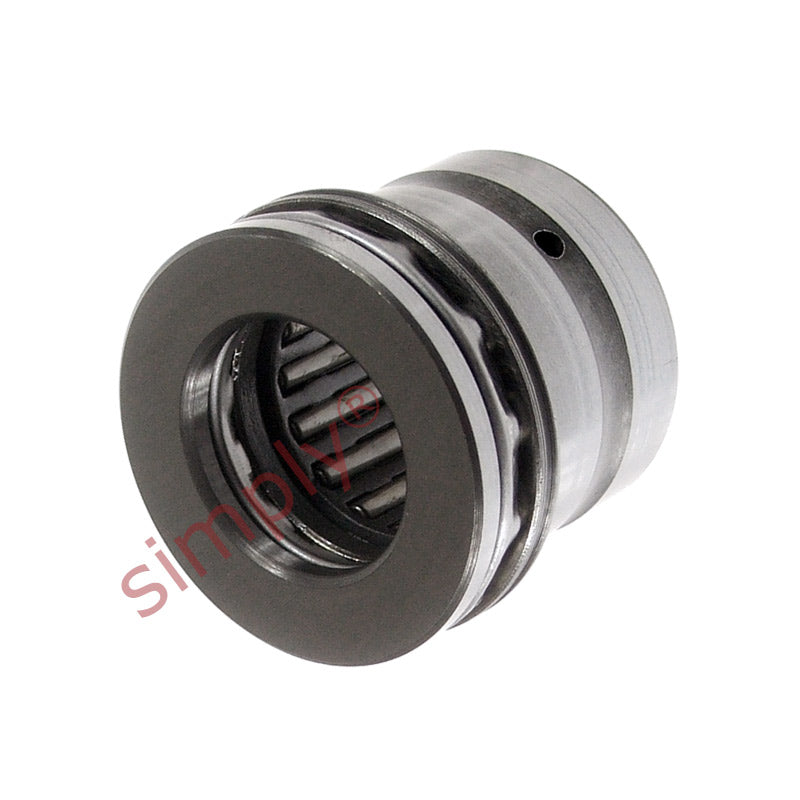

NKX45 Budget Needle Roller Thrust Ball Bearing Without Cover 45x58x32mm

Name: NKX45 Budget Needle Roller Thrust Ball Bearing Without Cover 45x58x32mm
Brand: Gen
SKU: NKX45-EU
Price: 76.56 USD
Availability: InStock

$76.56 ex VAT

Sale Sold out

In stock

Price Break

10+ $51.29

19+ $48.40

29+ $47.83

39+ $47.25

49+ $46.68

74+ $46.10

99+ $43.22

199+ $42.64

249+ $42.07

499+ $41.49

999+ $40.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 45mm
Outside Diameter:: 58mm
Width:: 32mm

Technical

Fw	45mm
D	58mm
C	32mm
Radial dynamic load	28100 N
Radial static load	57000 N
Axial dynamic load	28100 N
Axial static load	75000 N
Fatigue load limit radial Pu	7100 N
Fatigue load limit axial Pu	2800 N
Min load factor	29
Speed in grease	3400 rpm
Speed in oil	4500 rpm
C1	14mm
C2	9mm
d	45mm
d1	65mm
D1	65mm
r1r2 min	0.6mm
da min	57mm
ra max	0.6mm
rb max	0.3mm
di	40mm
F	45mm
Bi	20mm
Inner ring	IR40x45x20
Weight	250 g
