SKU: NKX50-EU

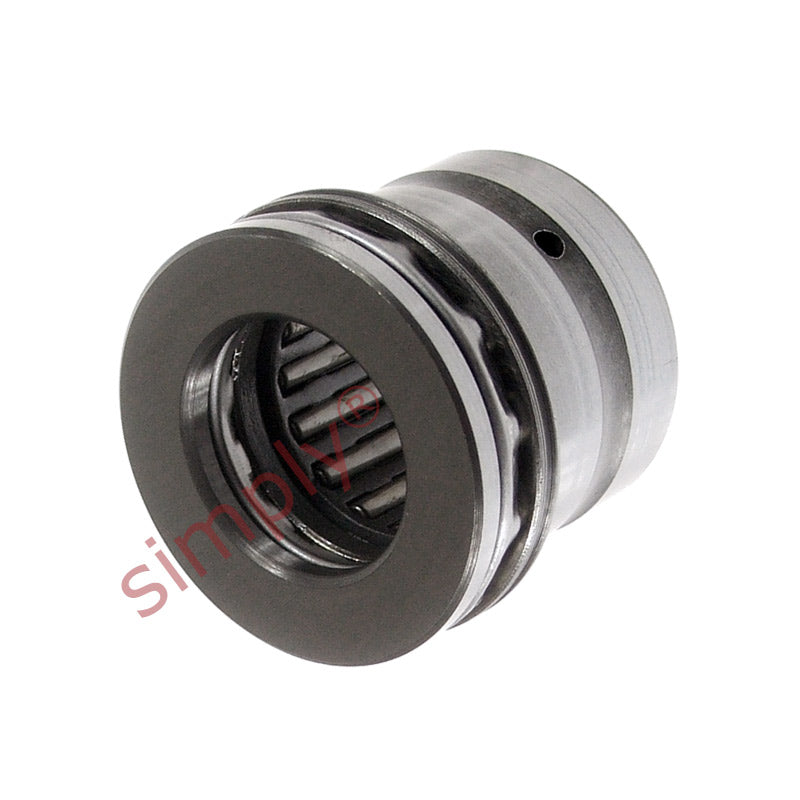

NKX50 Budget Needle Roller Thrust Ball Bearing Without Cover 50x62x35mm

Name: NKX50 Budget Needle Roller Thrust Ball Bearing Without Cover 50x62x35mm
Brand: Gen
SKU: NKX50-EU
Price: 83.68 USD
Availability: InStock

$83.68 ex VAT

Sale Sold out

In stock

Price Break

10+ $56.05

19+ $52.90

29+ $52.27

39+ $51.64

49+ $51.01

74+ $50.39

99+ $47.24

199+ $46.61

249+ $45.98

499+ $45.35

999+ $44.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 50mm
Outside Diameter:: 62mm
Width:: 35mm

Technical

Fw	50mm
D	62mm
C	35mm
Radial dynamic load	38000 N
Radial static load	80000 N
Axial dynamic load	28600 N
Axial static load	81500 N
Fatigue load limit radial Pu	9650 N
Fatigue load limit axial Pu	3050 N
Min load factor	34
Speed in grease	3200 rpm
Speed in oil	4300 rpm
C1	14mm
C2	10mm
d	50mm
d1	70mm
D1	70mm
r1r2 min	0.6mm
da min	62mm
ra max	0.6mm
rb max	0.3mm
di	45mm
F	50mm
Bi	25mm
Inner ring	IR45x50x25
Weight	280 g
