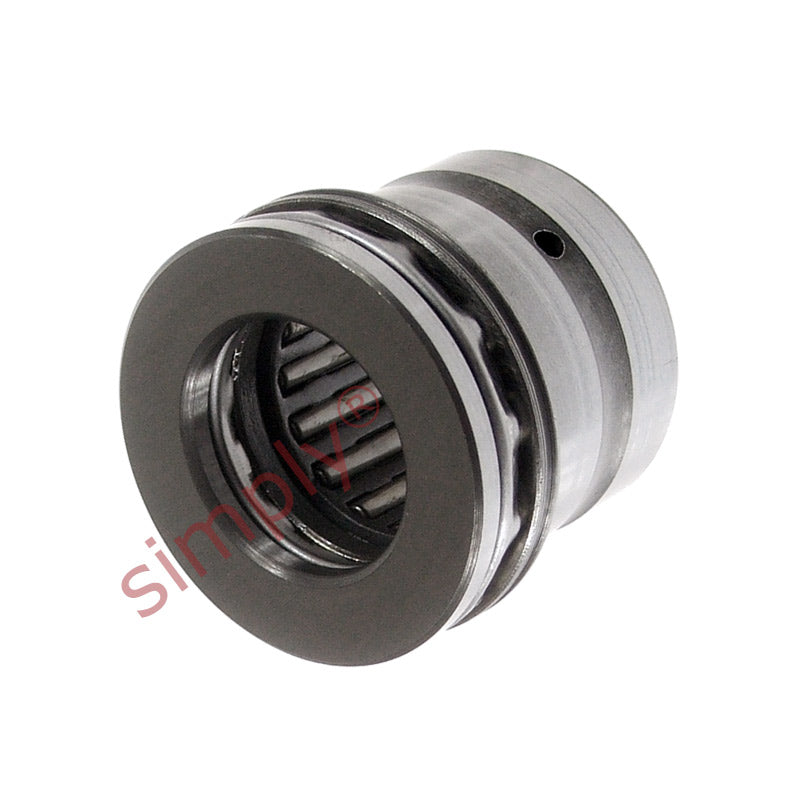

• NKX60 Budget Needle Roller Thrust Ball Bearing Without Cover 60x72x40mm
1 1

SKU: NKX60-EU

NKX60 Budget Needle Roller Thrust Ball Bearing Without Cover 60x72x40mm

NKX60 Budget Needle Roller Thrust Ball Bearing Without Cover 60x72x40mm
$117.51 ex VAT
$117.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $78.72
19+ $74.29
29+ $73.41
39+ $72.52
49+ $71.64
74+ $70.76
99+ $66.33
199+ $65.45
249+ $64.56
499+ $63.68
999+ $61.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation.
Benefits: High speed / thrust loading, separable design- easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
72mm
Width:
40mm
Technical
Fw 60mm
D 72mm
C 40mm
Radial dynamic load 41800 N
Radial static load 96500 N
Axial dynamic load 41600 N
Axial static load 122000 N
Fatigue load limit radial Pu 11800 N
Fatigue load limit axial Pu 4550 N
Min load factor 77
Speed in grease 2600 rpm
Speed in oil 3600 rpm
C1 17mm
C2 12mm
d 60mm
d1 85mm
D1 85mm
r1r2 min 1mm
da min 75mm
ra max 1mm
rb max 1mm
di 50mm
F 60mm
Bi 25mm
Inner ring IR50x60x25
Weight 360 g
