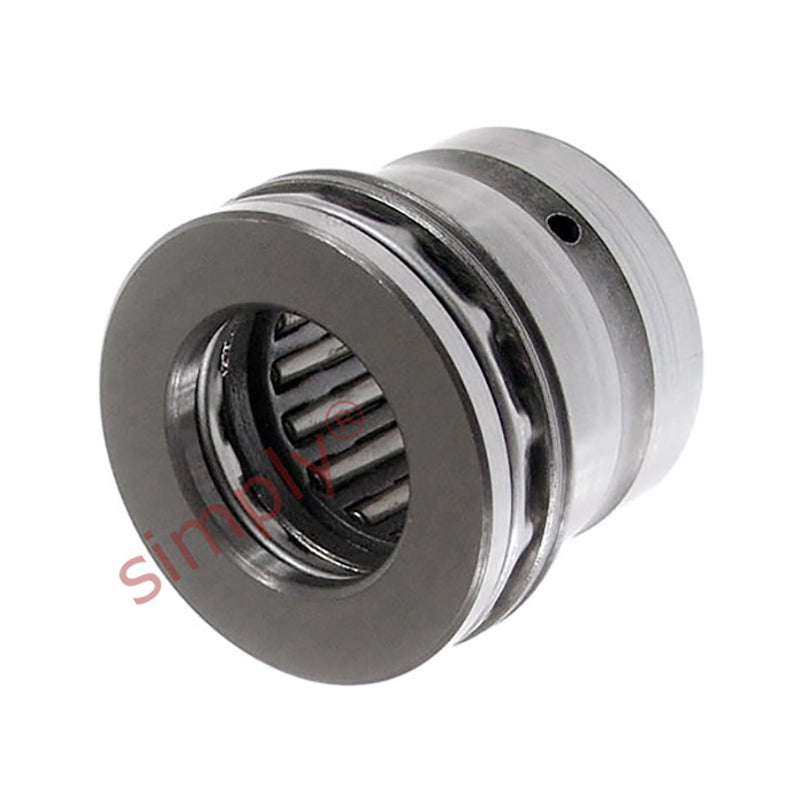

NKXR15 Budget Needle Roller Thrust Bearing without Cover 15x24x23mm

Name: NKXR15 Budget Needle Roller Thrust Bearing without Cover 15x24x23mm
Brand: Gen
SKU: NKXR15-EU
Price: 39.94 USD
Availability: InStock

$39.94 ex VAT

Sale Sold out

In stock

Price Break

10+ $26.75

19+ $25.25

29+ $24.95

39+ $24.65

49+ $24.35

74+ $24.05

99+ $22.54

199+ $22.24

249+ $21.94

499+ $21.64

999+ $21.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 23mm

Technical

Fw	15mm
D	24mm
C	23mm
Dynamic load	11200 N
Static load	14000 N
Axial dynamic load	11200 N
Axial static load	27000 N
Fatigue load limit radial Pu	1660 N
Fatigue load limit axial Pu	2450 N
Min load factor A	0.058
Speed in grease	3200 rpm
Speed in oil	4300 rpm
C1	9mm
C2	6.5mm
d	15mm
D1	28mm
r1r2 min	0.3mm
da	23.7mm
ra max	0.3mm
rb max	0.3mm
di	12mm
F	15mm
B1	16mm
Inner ring	IR12x15x16
Weight	42 g
