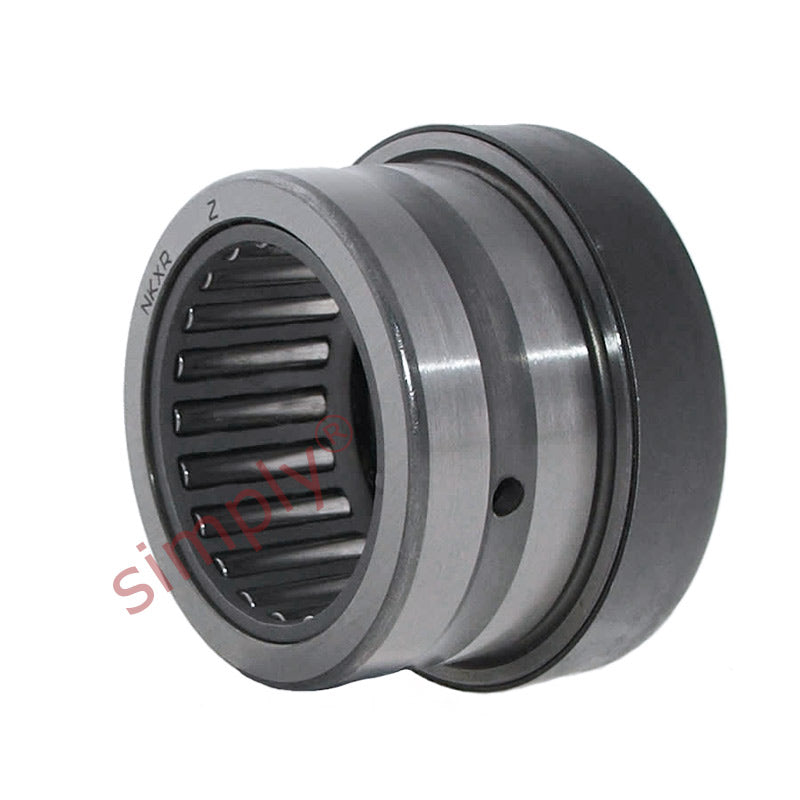

• NKXR15Z Budget Needle Roller Thrust Bearing with Cover 15x24x23mm
1 1

SKU: NKXR15Z-EU

NKXR15Z Budget Needle Roller Thrust Bearing with Cover 15x24x23mm

NKXR15Z Budget Needle Roller Thrust Bearing with Cover 15x24x23mm
$41.79 ex VAT
$41.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $27.99
19+ $26.42
29+ $26.10
39+ $25.79
49+ $25.47
74+ $25.16
99+ $23.59
199+ $23.27
249+ $22.96
499+ $22.64
999+ $22.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Outside Diameter:
24mm
Width:
23mm
Seals / Shields:
Metal Shields
Technical
Fw 15mm
D 24mm
C 23mm
Dynamic load 11200 N
Static load 14000 N
Axial dynamic load 11200 N
Axial static load 27000 N
Fatigue load limit radial Pu 1660 N
Fatigue load limit axial Pu 2450 N
Min load factor A 0.058
Speed in grease 3200 rpm
Speed in oil 4300 rpm
C1 9mm
C2 6.5mm
d 15mm
D2 29.2mm
r1r2 min 0.3mm
da 23.7mm
ra max 0.3mm
rb max 0.3mm
di 12mm
F 15mm
B1 16mm
Inner ring IR12x15x16
Weight 45 g
