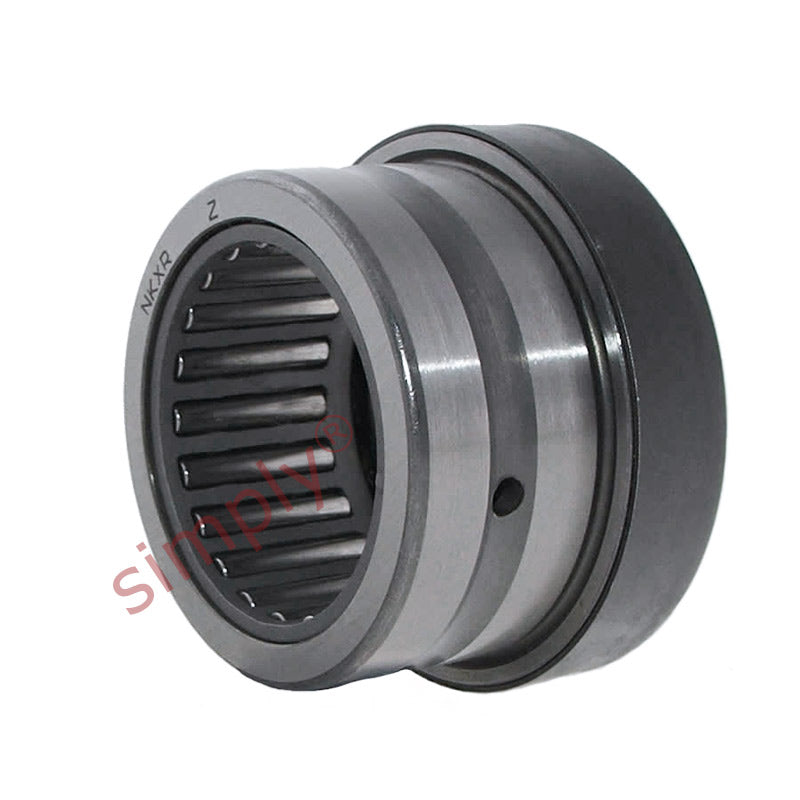

• Major Brand NKXR15Z Needle Roller Thrust Bearing without Cover 15x24x23mm
1 1

SKU: NKXR15Z-MB

Major Brand NKXR15Z Needle Roller Thrust Bearing without Cover 15x24x23mm

Major Brand NKXR15Z Needle Roller Thrust Bearing without Cover 15x24x23mm
$97.50 ex VAT
$97.50 ex VAT
Sale Sold out

In stock

Price Break
10+ $65.31
19+ $61.64
29+ $60.91
39+ $60.17
49+ $59.44
74+ $58.70
99+ $55.04
199+ $54.30
249+ $53.57
499+ $52.83
999+ $51.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
15mm
Outside Diameter:
24mm
Width:
23mm
Technical
Fw 15mm
D 24mm
C 23mm
Dynamic load 11200 N
Static load 14000 N
Axial dynamic load 11200 N
Axial static load 27000 N
Fatigue load limit radial Pu 1660 N
Fatigue load limit axial Pu 2450 N
Min load factor A 0.058
Speed in grease 3200 rpm
Speed in oil 4300 rpm
C1 9mm
C2 6.5mm
d 15
Reviews
View full details
