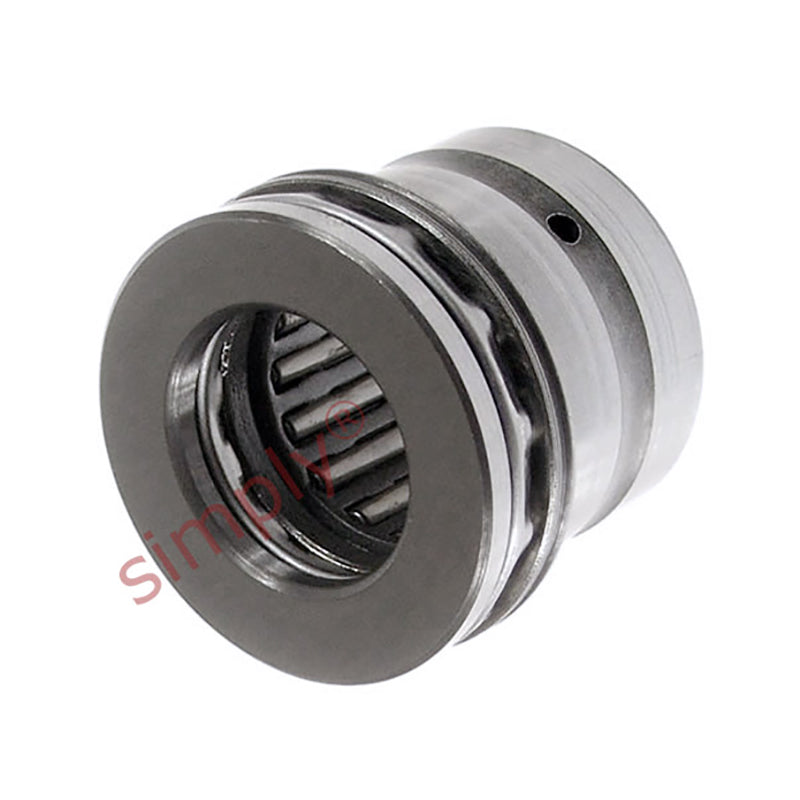

• NKXR20 Budget Needle Roller Thrust Bearing without Cover 20x30x30mm
1 1

SKU: NKXR20-EU

NKXR20 Budget Needle Roller Thrust Bearing without Cover 20x30x30mm

NKXR20 Budget Needle Roller Thrust Bearing without Cover 20x30x30mm
$52.83 ex VAT
$52.83 ex VAT
Sale Sold out

In stock

Price Break
10+ $35.38
19+ $33.40
29+ $33.00
39+ $32.60
49+ $32.20
74+ $31.81
99+ $29.82
199+ $29.42
249+ $29.02
499+ $28.63
999+ $27.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
30mm
Width:
30mm
Technical
Fw 20mm
D 30mm
C 30mm
Dynamic load 16800 N
Static load 26000 N
Axial dynamic load 18600 N
Axial static load 48000 N
Fatigue load limit radial Pu 3050 N
Fatigue load limit axial Pu 4650 N
Min load factor A 0.18
Speed in grease 2800 rpm
Speed in oil 3800 rpm
C1 10mm
C2 10.5mm
d 20mm
D1 35mm
r1r2 min 0.3mm
da 30.7mm
ra max 0.3mm
rb max 0.3mm
di 17mm
F 20mm
B1 20mm
Inner ring IR17x20x20
Weight 80 g
