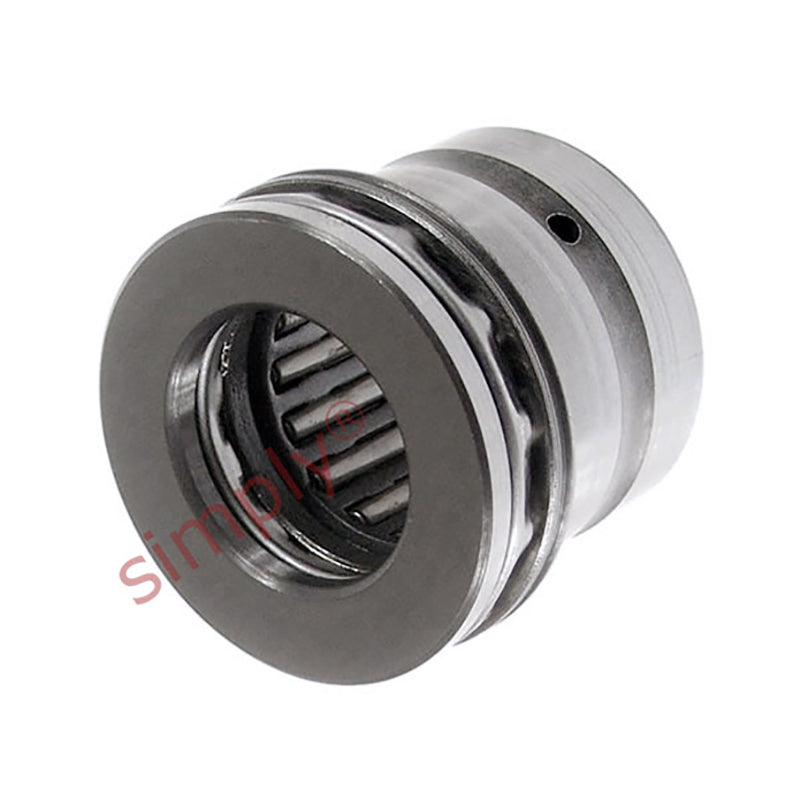

• NKXR25 Budget Needle Roller Thrust Bearing without Cover 25x37x30mm
1 1

SKU: NKXR25-EU

NKXR25 Budget Needle Roller Thrust Bearing without Cover 25x37x30mm

NKXR25 Budget Needle Roller Thrust Bearing without Cover 25x37x30mm
$57.69 ex VAT
$57.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $38.64
19+ $36.47
29+ $36.04
39+ $35.60
49+ $35.17
74+ $34.73
99+ $32.56
199+ $32.13
249+ $31.69
499+ $31.26
999+ $30.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
37mm
Width:
30mm
Technical
Fw 25mm
D 37mm
C 30mm
Dynamic load 19000 N
Static load 32500 N
Axial dynamic load 25000 N
Axial static load 69500 N
Fatigue load limit radial Pu 4000 N
Fatigue load limit axial Pu 6800 N
Min load factor A 0.39
Speed in grease 2200 rpm
Speed in oil 3200 rpm
C1 11mm
C2 9.5mm
d 25mm
D1 42mm
r1r2 min 0.6mm
da 37.7mm
ra max 0.6mm
rb max 0.3mm
di 20mm
F 25mm
B1 20mm
Inner ring IR20x25x20
Weight 120 g
