• NKXR25Z Budget Needle Roller Thrust Bearing with Cover 25x37x30mm
1 1

SKU: NKXR25Z-EU

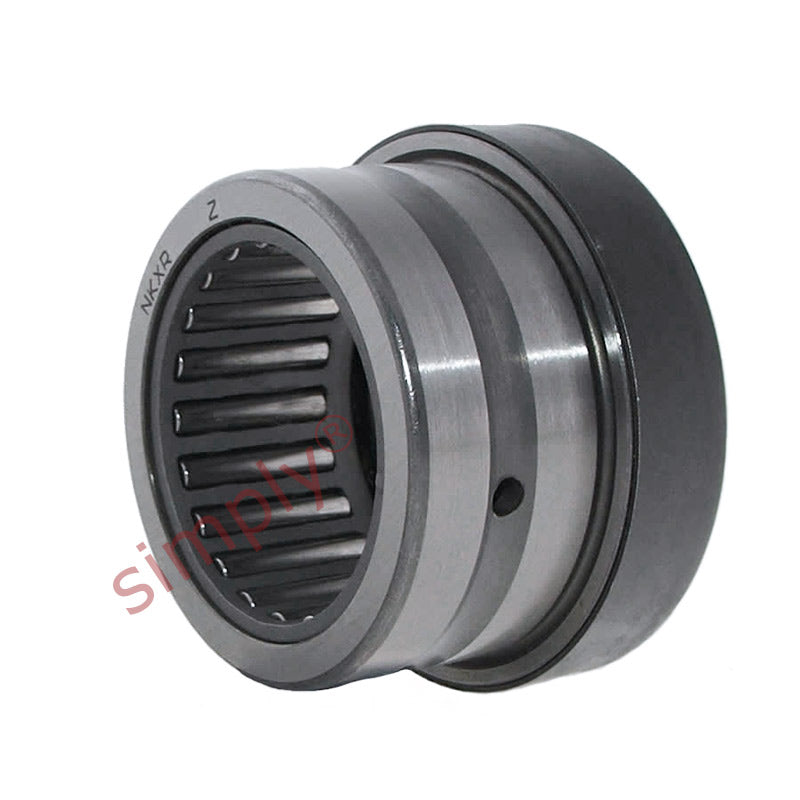

NKXR25Z Budget Needle Roller Thrust Bearing with Cover 25x37x30mm

NKXR25Z Budget Needle Roller Thrust Bearing with Cover 25x37x30mm
$60.84 ex VAT
$60.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.75
19+ $38.46
29+ $38.00
39+ $37.55
49+ $37.09
74+ $36.63
99+ $34.34
199+ $33.88
249+ $33.43
499+ $32.97
999+ $32.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
37mm
Width:
30mm
Seals / Shields:
Metal Shields
Technical
Fw 25mm
D 37mm
C 30mm
Dynamic load 19000 N
Static load 32500 N
Axial dynamic load 25000 N
Axial static load 69500 N
Fatigue load limit radial Pu 4000 N
Fatigue load limit axial Pu 6800 N
Min load factor A 0.39
Speed in grease 2200 rpm
Speed in oil 3200 rpm
C1 11mm
C2 9.5mm
d 25mm
D2 43.2mm
r1r2 min 0.6mm
da 37.7mm
ra max 0.6mm
rb max 0.3mm
di 20mm
F 25mm
B1 20mm
Inner ring IR20x25x20
Weight 130 g
