• NKXR30 Budget Needle Roller Thrust Bearing without Cover 30x42x30mm
1 1

SKU: NKXR30-EU

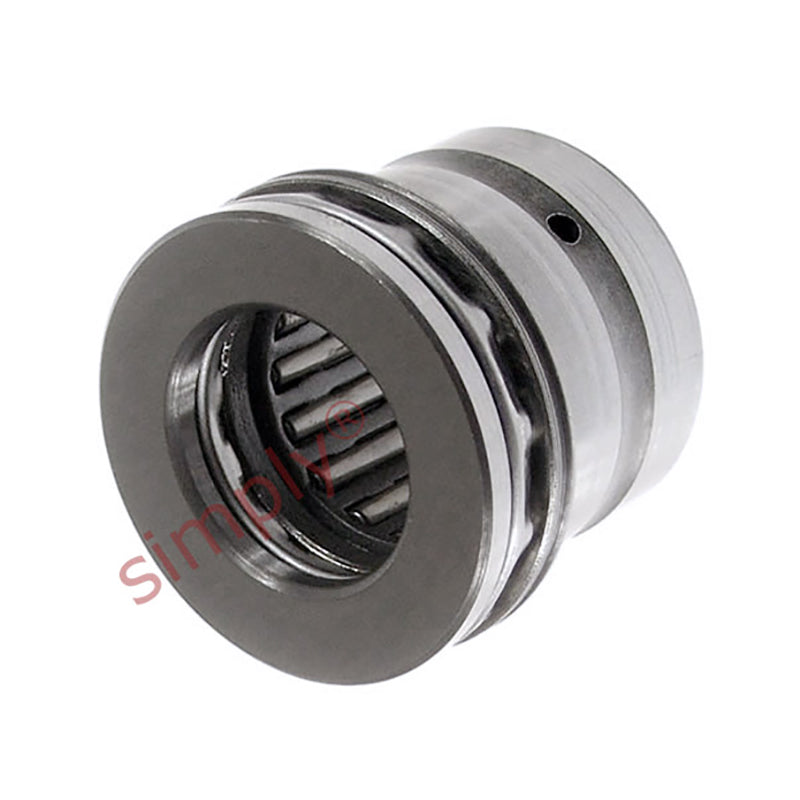

NKXR30 Budget Needle Roller Thrust Bearing without Cover 30x42x30mm

NKXR30 Budget Needle Roller Thrust Bearing without Cover 30x42x30mm
$64.69 ex VAT
$64.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $43.33
19+ $40.90
29+ $40.41
39+ $39.92
49+ $39.44
74+ $38.95
99+ $36.52
199+ $36.03
249+ $35.54
499+ $35.05
999+ $34.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
42mm
Width:
30mm
Technical
Fw 30mm
D 42mm
C 30mm
Dynamic load 22900 N
Static load 39000 N
Axial dynamic load 27000 N
Axial static load 78000 N
Fatigue load limit radial Pu 4800 N
Fatigue load limit axial Pu 7650 N
Min load factor A 0.49
Speed in grease 2000 rpm
Speed in oil 3000 rpm
C1 11mm
C2 9.5mm
d 30mm
D1 47mm
r1r2 min 0.6mm
da 42.7mm
ra max 0.6mm
rb max 0.3mm
di 25mm
F 30mm
B1 20mm
Inner ring IR25x30x20
Weight 140 g
