SKU: NKXR35-EU

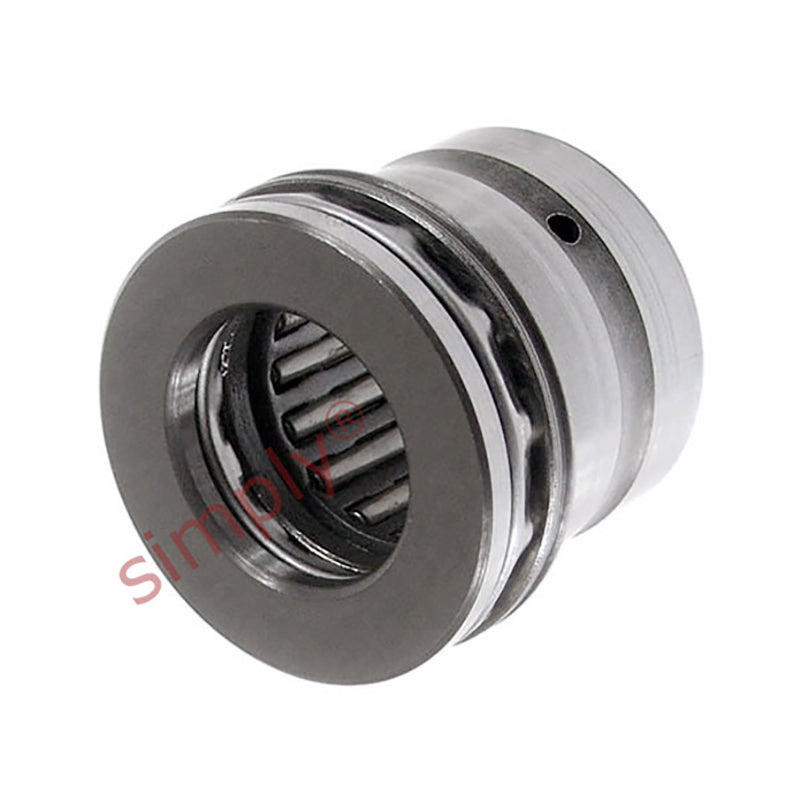

NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm

Name: NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm
Brand: Gen
SKU: NKXR35-EU
Price: 66.62 USD
Availability: InStock

$66.62 ex VAT

Sale Sold out

In stock

Price Break

10+ $44.63

19+ $42.12

29+ $41.62

39+ $41.12

49+ $40.62

74+ $40.12

99+ $37.61

199+ $37.11

249+ $36.60

499+ $36.10

999+ $35.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 35mm
Outside Diameter:: 47mm
Width:: 30mm

Technical

Fw	35mm
D	47mm
C	30mm
Dynamic load	24600 N
Static load	45000 N
Axial dynamic load	29000 N
Axial static load	93000 N
Fatigue load limit radial Pu	5600 N
Fatigue load limit axial Pu	9150 N
Min load factor A	0.69
Speed in grease	1900 rpm
Speed in oil	2800 rpm
C1	12mm
C2	9mm
d	35mm
D1	52mm
r1r2 min	0.6mm
da	47.7mm
ra max	0.6mm
rb max	0.3mm
di	30mm
F	35mm
B1	20mm
Inner ring	IR30x35x20
Weight	160 g
