• NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm
1 1

SKU: NKXR35Z-EU

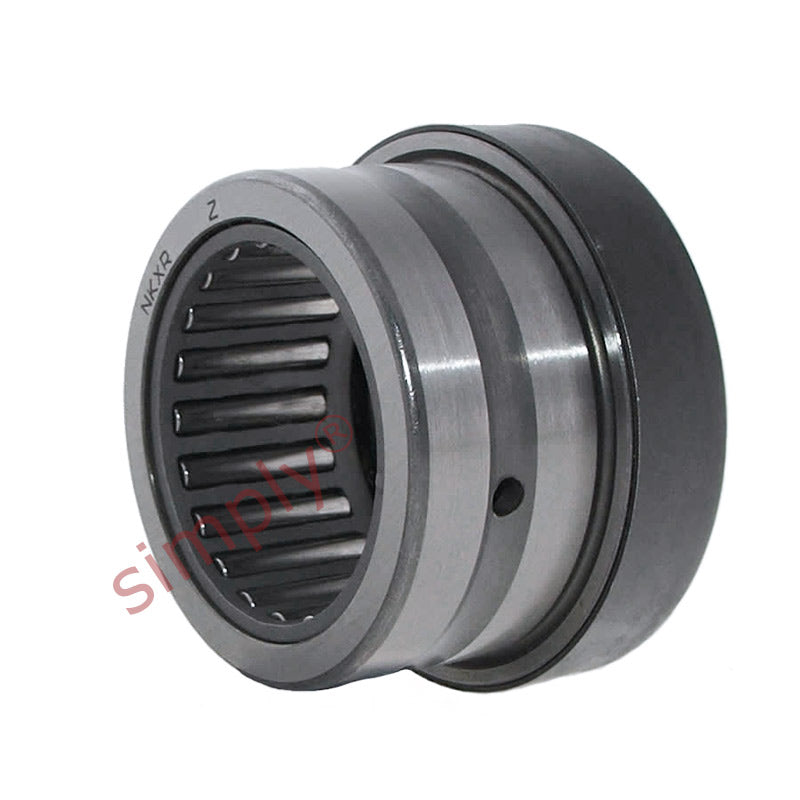

NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm

NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm
$81.70 ex VAT
$81.70 ex VAT
Sale Sold out

In stock

Price Break
10+ $54.73
19+ $51.65
29+ $51.04
39+ $50.42
49+ $49.81
74+ $49.19
99+ $46.12
199+ $45.50
249+ $44.89
499+ $44.27
999+ $43.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
47mm
Width:
30mm
Seals / Shields:
Metal Shields
Technical
Fw 35mm
D 47mm
C 30mm
Dynamic load 24600 N
Static load 45000 N
Axial dynamic load 29000 N
Axial static load 93000 N
Fatigue load limit radial Pu 5600 N
Fatigue load limit axial Pu 9150 N
Min load factor A 0.69
Speed in grease 1900 rpm
Speed in oil 2800 rpm
C1 12mm
C2 9mm
d 35mm
D2 53.2mm
r1r2 min 0.6mm
da 47.7mm
ra max 0.6mm
rb max 0.3mm
di 30mm
F 35mm
B1 20mm
Inner ring IR30x35x20
Weight 170 g
