SKU: NKXR35Z-MB

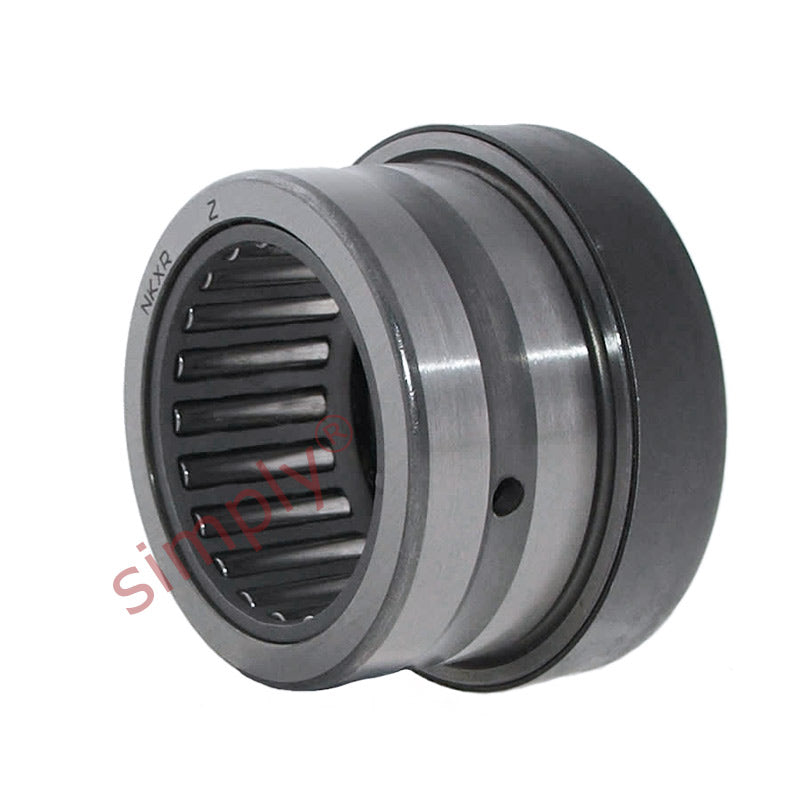

Major Brand NKXR35Z Needle Roller Thrust Bearing without Cover 35x47x30mm

Name: Major Brand NKXR35Z Needle Roller Thrust Bearing without Cover 35x47x30mm
Brand: Major Brand
SKU: NKXR35Z-MB
Price: 136.18 USD
Availability: InStock

$136.18 ex VAT

Sale Sold out

In stock

Price Break

10+ $91.21

19+ $86.09

29+ $85.06

39+ $84.04

49+ $83.01

74+ $81.99

99+ $76.87

199+ $75.84

249+ $74.82

499+ $73.79

999+ $71.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 47mm
Width:: 30mm

Technical

Fw	35mm
D	47mm
C	30mm
Dynamic load	24600 N
Static load	45000 N
Axial dynamic load	29000 N
Axial static load	93000 N
Fatigue load limit radial Pu	5600 N
Fatigue load limit axial Pu	9150 N
Min load factor A	0.69
Speed in grease	1900 rpm
Speed in oil	2800 rpm
C1	12mm
C2	9mm
d	35
