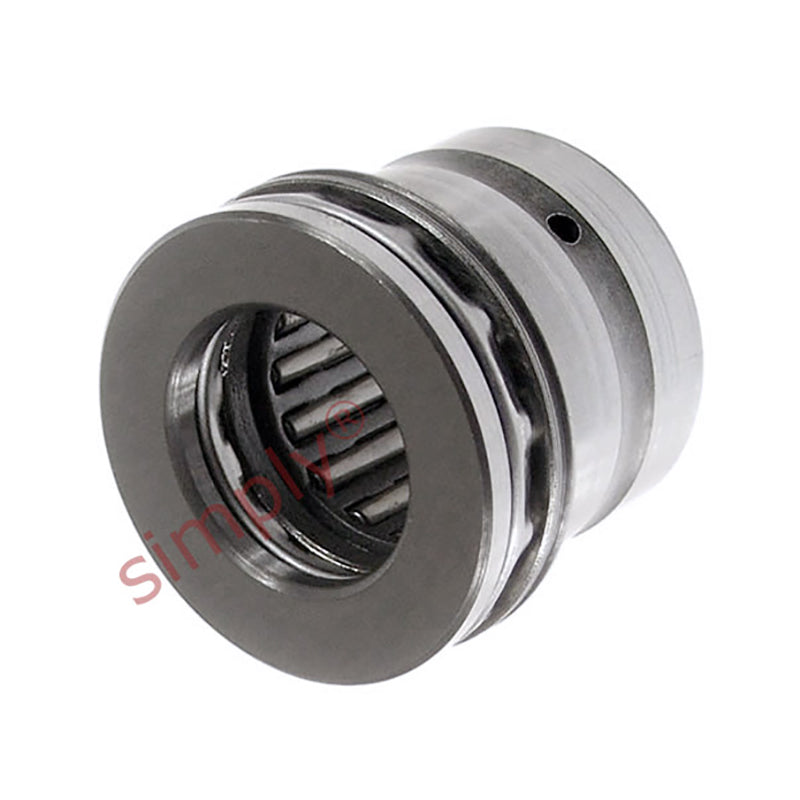

• NKXR40 Budget Needle Roller Thrust Bearing without Cover 40x52x32mm
1 1

SKU: NKXR40-EU

NKXR40 Budget Needle Roller Thrust Bearing without Cover 40x52x32mm

NKXR40 Budget Needle Roller Thrust Bearing without Cover 40x52x32mm
$90.34 ex VAT
$90.34 ex VAT
Sale Sold out

In stock

Price Break
10+ $60.51
19+ $57.11
29+ $56.43
39+ $55.75
49+ $55.07
74+ $54.39
99+ $50.99
199+ $50.31
249+ $49.63
499+ $48.95
999+ $47.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
52mm
Width:
32mm
Technical
Fw 40mm
D 52mm
C 32mm
Dynamic load 26400 N
Static load 51000 N
Axial dynamic load 43000 N
Axial static load 137000 N
Fatigue load limit radial Pu 6300 N
Fatigue load limit axial Pu 13700 N
Min load factor A 1.5
Speed in grease 1700 rpm
Speed in oil 2400 rpm
C1 13mm
C2 10mm
d 40mm
D1 60mm
r1r2 min 0.6mm
da 55.7mm
ra max 0.6mm
rb max 0.3mm
di 35mm
F 40mm
B1 20mm
Inner ring IR35x40x20
Weight 200 g
