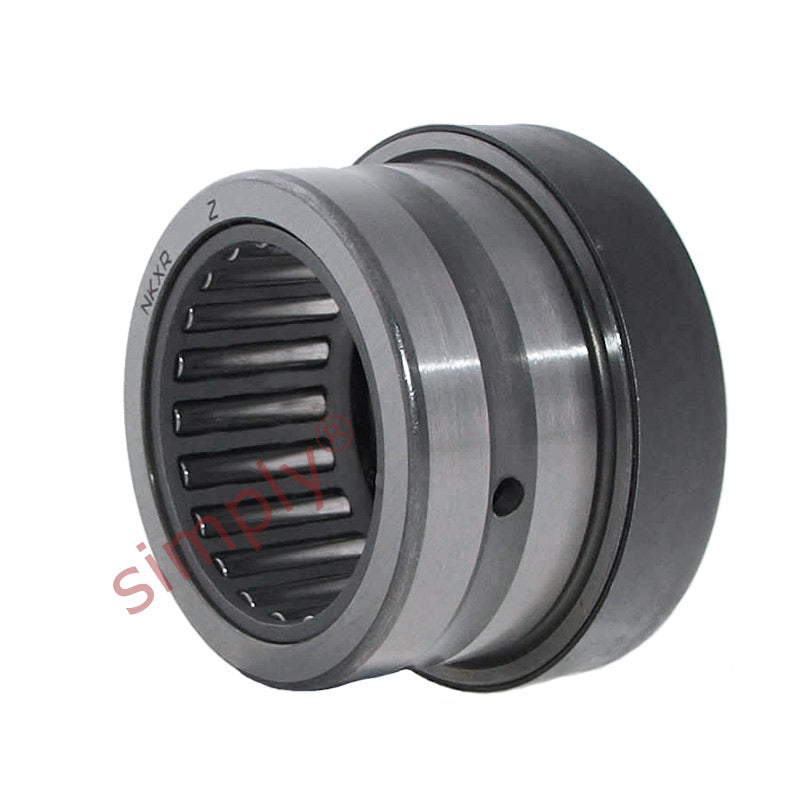

• NKXR40Z Budget Needle Roller Thrust Bearing with Cover 40x52x32mm
1 1

SKU: NKXR40Z-EU

NKXR40Z Budget Needle Roller Thrust Bearing with Cover 40x52x32mm

NKXR40Z Budget Needle Roller Thrust Bearing with Cover 40x52x32mm
$95.27 ex VAT
$95.27 ex VAT
Sale Sold out

In stock

Price Break
10+ $63.81
19+ $60.23
29+ $59.51
39+ $58.79
49+ $58.08
74+ $57.36
99+ $53.77
199+ $53.06
249+ $52.34
499+ $51.62
999+ $50.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
52mm
Width:
32mm
Seals / Shields:
Metal Shields
Technical
Fw 40mm
D 52mm
C 32mm
Dynamic load 26400 N
Static load 51000 N
Axial dynamic load 43000 N
Axial static load 137000 N
Fatigue load limit radial Pu 6300 N
Fatigue load limit axial Pu 13700 N
Min load factor A 1.5
Speed in grease 1700 rpm
Speed in oil 2400 rpm
C1 13mm
C2 10mm
d 40mm
D2 61.2mm
r1r2 min 0.6mm
da 55.7mm
ra max 0.6mm
rb max 0.3mm
di 35mm
F 40mm
B1 20mm
Inner ring IR35x40x20
Weight 210 g
