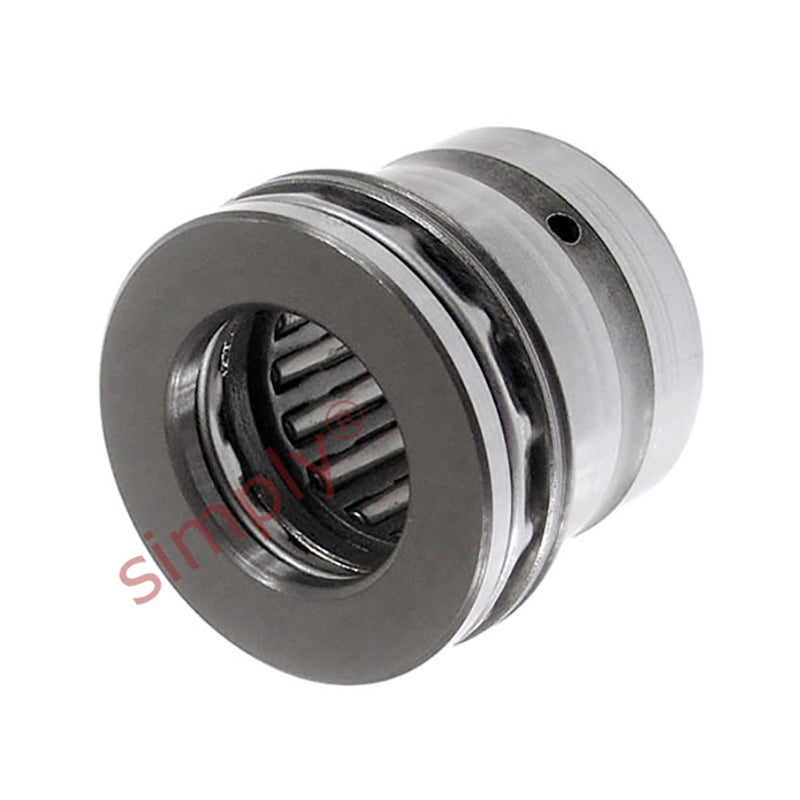

• NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
1 1

SKU: NKXR45-EU

NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm

NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
$107.76 ex VAT
$107.76 ex VAT
Sale Sold out

In stock

Price Break
10+ $72.18
19+ $68.12
29+ $67.31
39+ $66.50
49+ $65.69
74+ $64.88
99+ $60.83
199+ $60.01
249+ $59.20
499+ $58.39
999+ $56.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
58mm
Width:
32mm
Technical
Fw 45mm
D 58mm
C 32mm
Dynamic load 28100 N
Static load 57000 N
Axial dynamic load 45000 N
Axial static load 153000 N
Fatigue load limit radial Pu 7100 N
Fatigue load limit axial Pu 15300 N
Min load factor A 1.9
Speed in grease 1600 rpm
Speed in oil 2200 rpm
C1 14mm
C2 9mm
d 45mm
D1 65mm
r1r2 min 0.6mm
da 60.6mm
ra max 0.6mm
rb max 0.3mm
di 40mm
F 45mm
B1 20mm
Inner ring IR40x45x20
Weight 240 g
