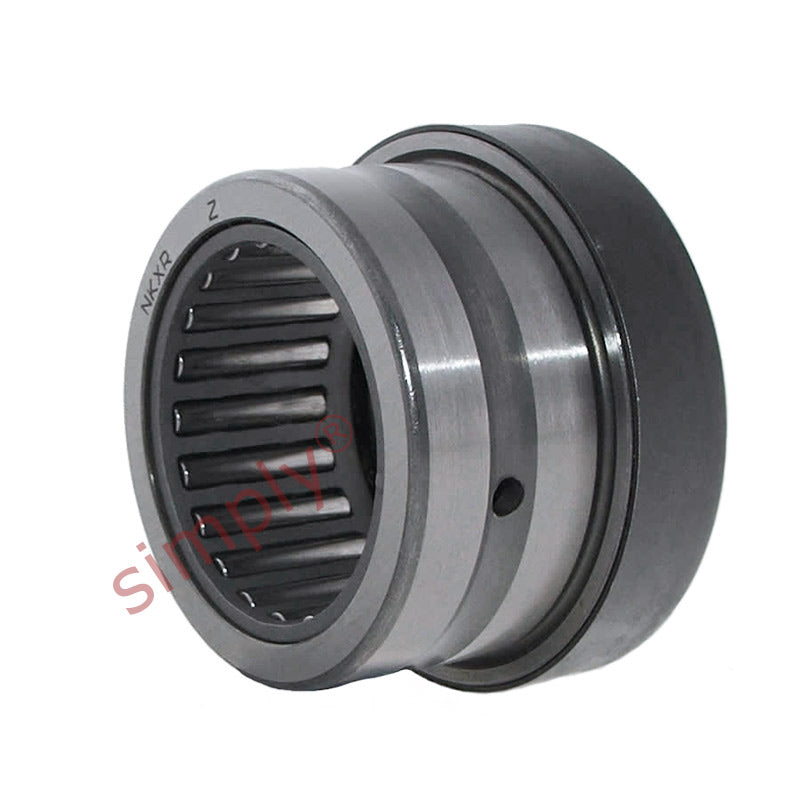

• NKXR45Z Budget Needle Roller Thrust Bearing with Cover 45x58x32mm
1 1

SKU: NKXR45Z-EU

NKXR45Z Budget Needle Roller Thrust Bearing with Cover 45x58x32mm

NKXR45Z Budget Needle Roller Thrust Bearing with Cover 45x58x32mm
$107.86 ex VAT
$107.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $72.25
19+ $68.19
29+ $67.38
39+ $66.57
49+ $65.76
74+ $64.95
99+ $60.89
199+ $60.07
249+ $59.26
499+ $58.45
999+ $56.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
58mm
Width:
32mm
Seals / Shields:
Metal Shields
Technical
Fw 45mm
D 58mm
C 32mm
Dynamic load 28100 N
Static load 57000 N
Axial dynamic load 45000 N
Axial static load 153000 N
Fatigue load limit radial Pu 7100 N
Fatigue load limit axial Pu 15300 N
Min load factor A 1.9
Speed in grease 1600 rpm
Speed in oil 2200 rpm
C1 14mm
C2 9mm
d 45mm
D2 66.5mm
r1r2 min 0.6mm
da 60.6mm
ra max 0.6mm
rb max 0.3mm
di 40mm
F 45mm
B1 20mm
Inner ring IR40x45x20
Weight 260 g
