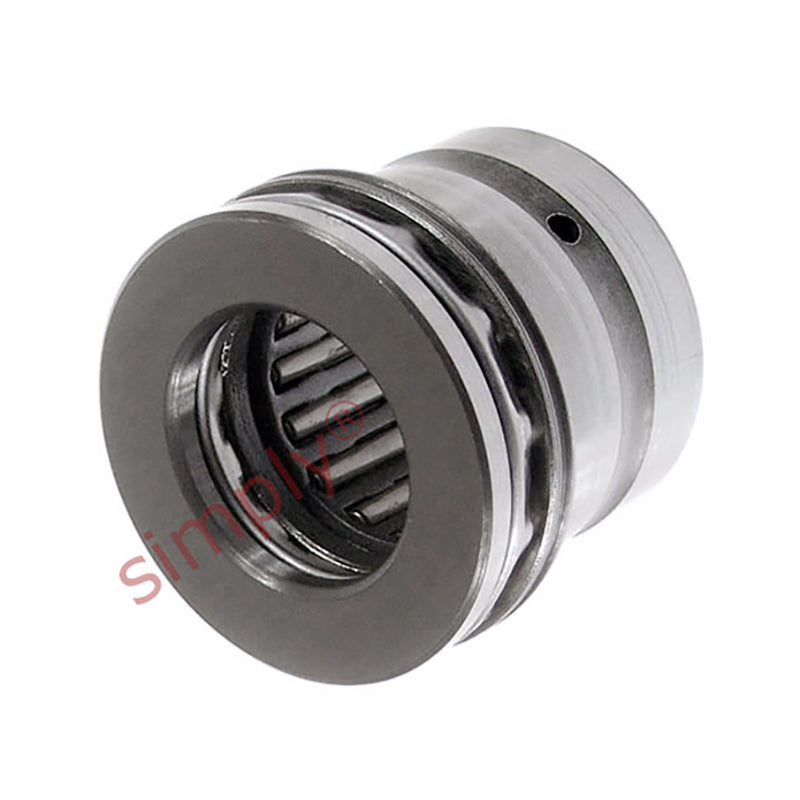

• NKXR50 Budget Needle Roller Thrust Bearing without Cover 50x62x35mm
1 1

SKU: NKXR50-EU

NKXR50 Budget Needle Roller Thrust Bearing without Cover 50x62x35mm

NKXR50 Budget Needle Roller Thrust Bearing without Cover 50x62x35mm
$120.49 ex VAT
$120.49 ex VAT
Sale Sold out

In stock

Price Break
10+ $80.70
19+ $76.17
29+ $75.26
39+ $74.36
49+ $73.45
74+ $72.54
99+ $68.01
199+ $67.10
249+ $66.19
499+ $65.29
999+ $63.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
62mm
Width:
35mm
Technical
Fw 50mm
D 62mm
C 35mm
Dynamic load 38000 N
Static load 80000 N
Axial dynamic load 47500 N
Axial static load 166000 N
Fatigue load limit radial Pu 9650 N
Fatigue load limit axial Pu 16600 N
Min load factor A 2.2
Speed in grease 1600 rpm
Speed in oil 2200 rpm
C1 14mm
C2 10mm
d 50mm
D1 70mm
r1r2 min 0.6mm
da 65.6mm
ra max 0.6mm
rb max 0.3mm
di 45mm
F 50mm
B1 25mm
Inner ring IR45x50x25
Weight 270 g
