SKU: NN3007 K/SP-SKF

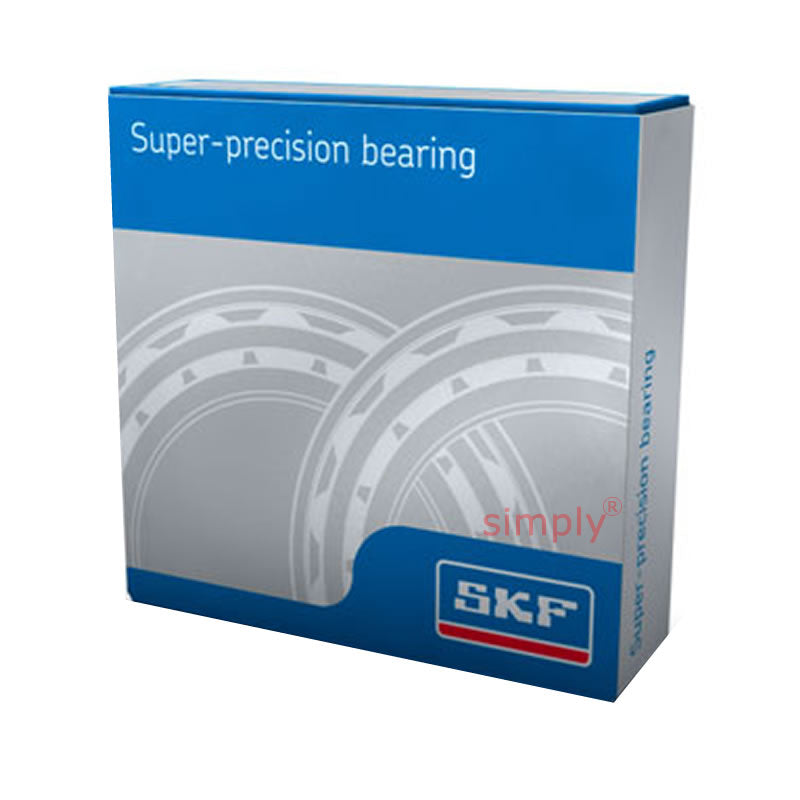

SKF NN3007KSP Super Precision Double Row Cylindrical Roller Spindle Bearing 35x62x20mm
In stock
Price Break
Couldn't load pickup availability
Description
SKF Super Precision Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings SKF super-precision double row cylindrical roller bearings are manufactured as standard in the NN 30 and NNU 49 series. Both series are available with either a cylindrical or a 1:12 tapered bore (designation suffix K). In machine tool applications, cylindrical roller bearings with a tapered bore are preferred over bearings with a cylindrical bore, because the taper enables more accurate adjustment of clearance or preload during mounting.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low friction, low cross-sectional height.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
- Seals / Shields:
- None
- Style:
- Super Precision Cylindrical Roller Bearings
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 20mm |
| --- | Speeds and loads |
| Dynamic load C | 39.1 Kn |
| Static load C<sub>o</sub> | 50 kn |
| Fatigue load P<sub>u</sub> | 5.4 kN |
| Speed in grease | 14000rpm |
| Speeed in oil | 16000rpm |
| Weight | 0.25kg |
| --- | Abutment and fillet dimensions |
| d<sub>1</sub> | 45.8mm |
| E | 55mm |
| r<sub>1 and 2 min</sub> | 1mm |
| r<sub>3 and 4 min</sub> | 0.6mm |
| S<sup>2</sup> | 1.5mm |
| d<sub>a</sub> min | 40mm |
| D<sub>a min</sub> | 56mm |
| D<sub>a max</sub> | 57mm |
| d<sub>n</sub> | 1mm |
| d<sub>n</sub> | 54mm |
| Reference grease quantity | 1.9 grams |
