SKU: NNC4930CV-SKF

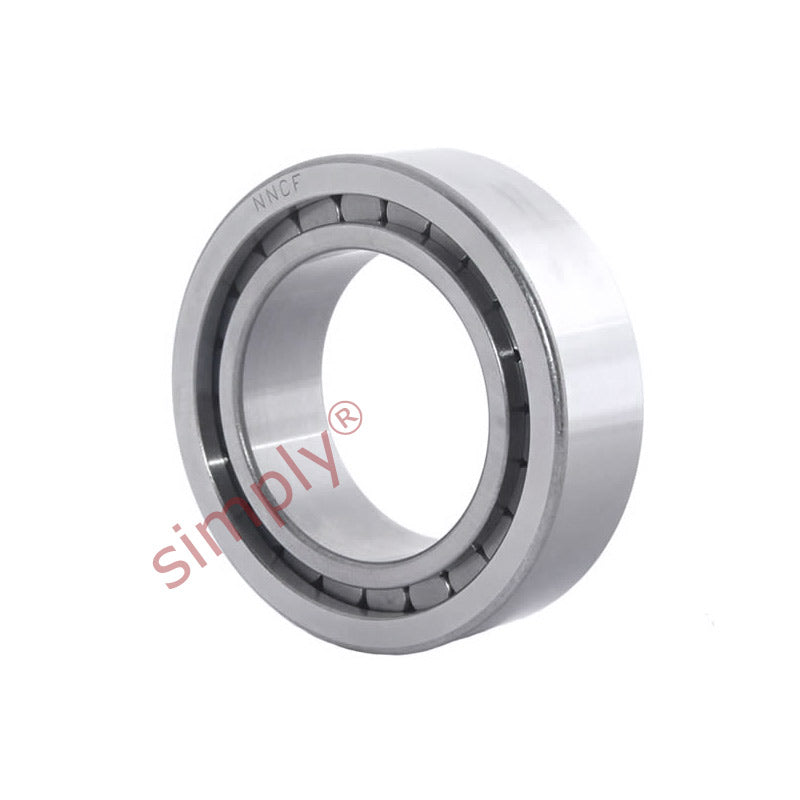

SKF NNC4930CV Double Row Full Complement Cylindrical Roller Bearing 150x210x60mm

Name: SKF NNC4930CV Double Row Full Complement Cylindrical Roller Bearing 150x210x60mm
Brand: SKF
SKU: NNC4930CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 150mm
Outside Diameter:: 210mm
Width:: 60mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	150mm
D	210mm
B	60mm
Dynamic load C	429 Kn
Static load Co	830 Kn
Fatigue load limit Pu	91.5 Kn
Reference speed	1400 rpm
Limiting speed	1700 rpm
Weight	6.65 kg
d1	171mm
D1	187mm
E	192.77mm
b1	7mm
r1r2 min	2mm
da min	160mm
das	168mm
Da max	200mm
Ra max	2mm
