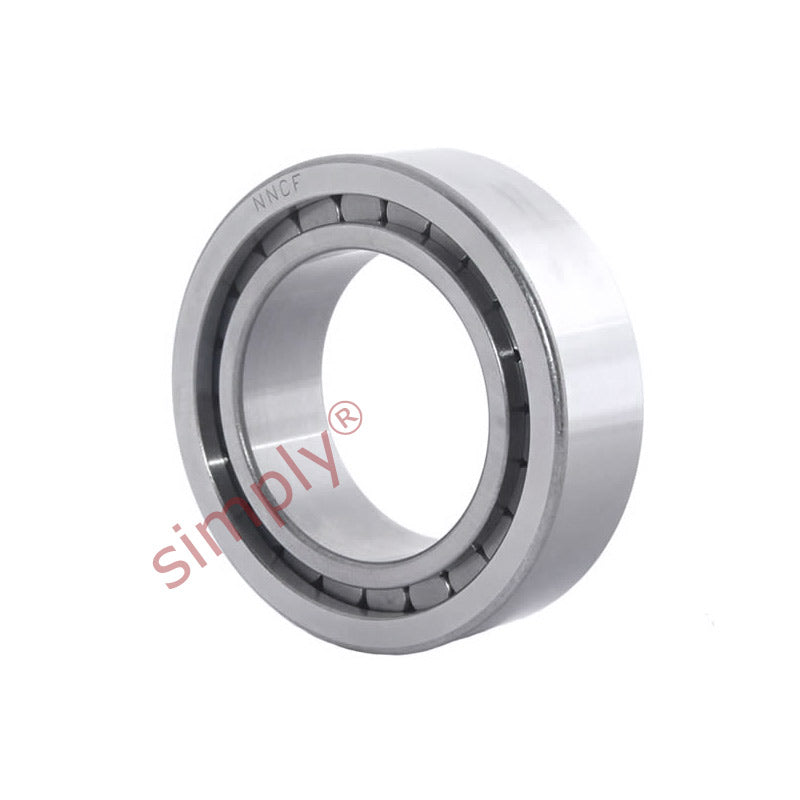

SKF NNCF5036CV Double Row Full Complement Cylindrical Roller Bearing 180x280x136mm

Name: SKF NNCF5036CV Double Row Full Complement Cylindrical Roller Bearing 180x280x136mm
Brand: SKF
SKU: NNCF5036CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 180mm
Outside Diameter:: 280mm
Width:: 136mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	180mm
D	280mm
B	136mm
Dynamic load C	1420 Kn
Static load Co	2500 Kn
Fatigue load limit Pu	270 Kn
Reference speed	1100 rpm
Limiting speed	1300 rpm
Weight	30.5 kg
d1	212mm
D1	249mm
E	260.5mm
b1	8mm
K	4mm
r1r2 min	2.1mm
S	8mm
da min	191mm
das	206mm
Da max	269mm
Ra max	2mm
