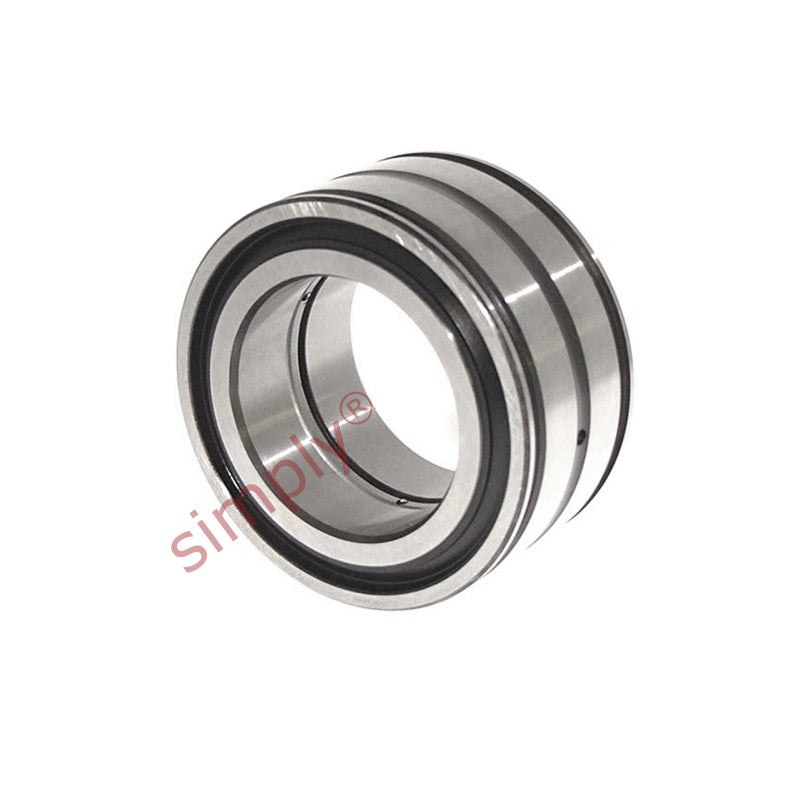

• SKF NNF5007ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 35x62x36mm
1 1

SKU: NNF5007ADB-2LSV-SKF

SKF NNF5007ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 35x62x36mm

SKF NNF5007ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 35x62x36mm
$275.65 ex VAT
$275.65 ex VAT
Sale Sold out

In stock

Price Break
10+ $184.64
19+ $174.26
29+ $172.19
39+ $170.11
49+ $168.04
74+ $165.96
99+ $155.59
199+ $153.52
249+ $151.44
499+ $149.37
999+ $145.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant
Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
36mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 35mm
D 62mm
B 36mm
C 35mm
Dynamic load C 70.4 kN
Static load Co 91.5 kN
Fatigue load limit Pu 10.2 kN
Limiting speed 2200 rpm
Weight 0.45 kg
d1 45mm
D1 59.8mm
E 54.5mm
C1+0.2 30.2mm
C2 2.4mm
b 2.1mm
b1 4.5mm
K 3mm
r min 0.5mm
r3r4 min 0.3mm
da min 39mm
das 43.3mm
Da max 60mm
Ca1 - 0.2 27mm
Ca2 - 0.2 26mm
ra max 0.3mm
rb max 0.3mm
Snap ring SW62
Din 471 62x2
