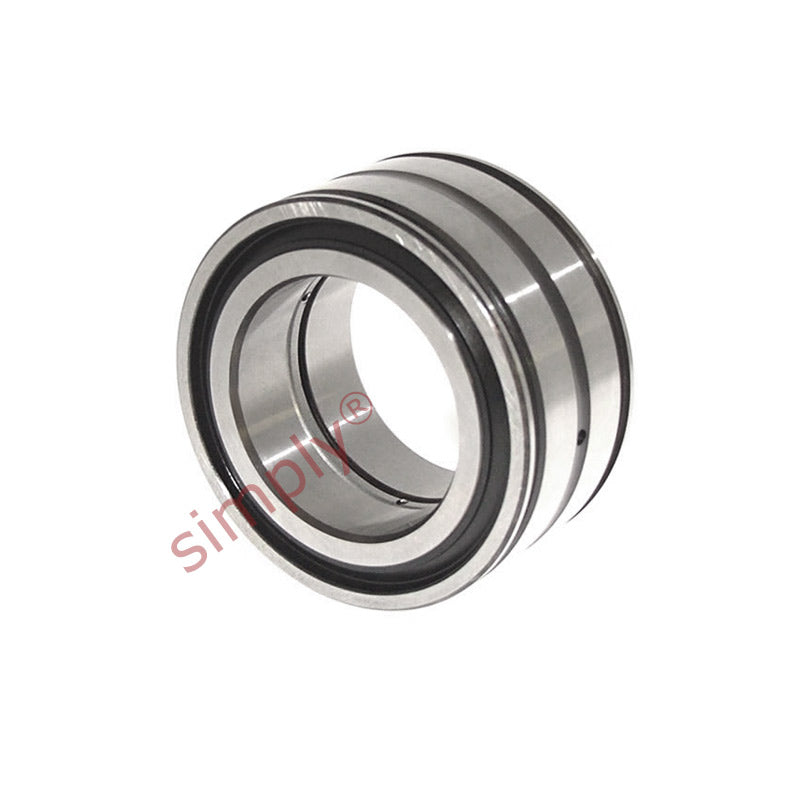

• SKF NNF5012ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 60x95x46mm
1 1

SKU: NNF5012ADB-2LSV-SKF

SKF NNF5012ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 60x95x46mm

SKF NNF5012ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 60x95x46mm
$488.52 ex VAT
$488.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $327.23
19+ $308.84
29+ $305.17
39+ $301.49
49+ $297.81
74+ $294.14
99+ $275.75
199+ $272.07
249+ $268.40
499+ $264.72
999+ $257.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
46mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 60mm
D 95mm
B 46mm
C 45mm
Dynamic load C 134 kN
Static load Co 208 kN
Fatigue load limit Pu 25 kN
Limiting speed 1400 rpm
Weight 1.2 kg
d1 73mm
D1 92.4mm
E 85mm
C1+0.2 40.2mm
C2 2.4mm
b 3.2mm
b1 4.5mm
K 3.5mm
r min 1mm
r3r4 min 0.6mm
da min 65mm
das 71mm
Da max 90mm
Ca1 - 0.2 35mm
Ca2 - 0.2 34mm
ra max 0.6mm
rb max 0.6mm
Snap ring SW95
Din 471 95x3
