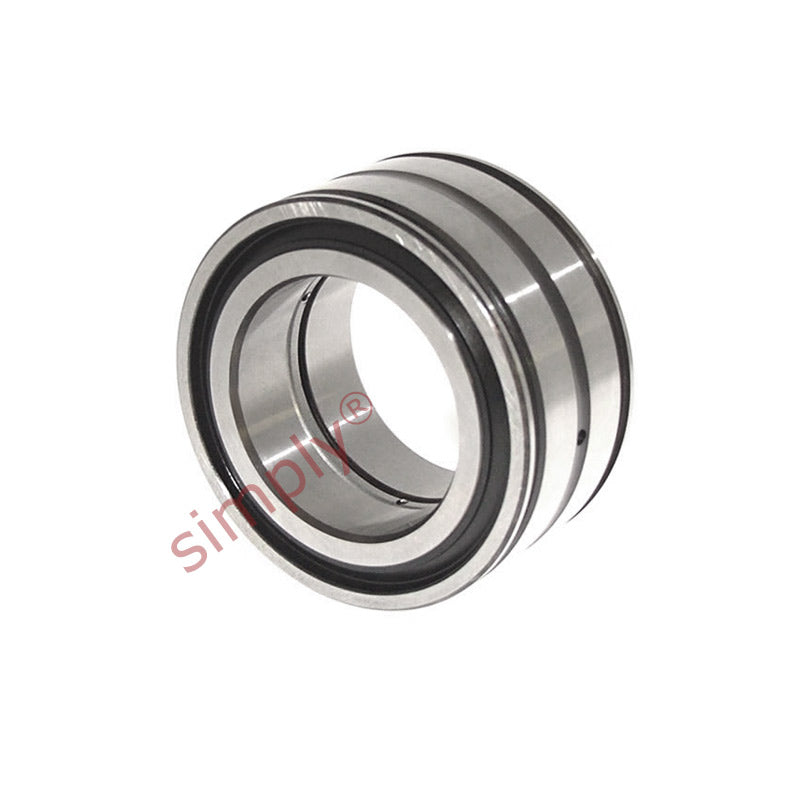

SKF NNF5013ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 65x100x46mm

Name: SKF NNF5013ADB2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 65x100x46mm
Brand: SKF
SKU: NNF5013ADB-2LSV-SKF
Price: 378.89 USD
Availability: InStock

$378.89 ex VAT

Sale Sold out

In stock

Price Break

10+ $253.79

19+ $239.53

29+ $236.68

39+ $233.83

49+ $230.98

74+ $228.13

99+ $213.87

199+ $211.02

249+ $208.17

499+ $205.32

999+ $199.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 100mm
Width:: 46mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	65mm
D	100mm
B	46mm
C	45mm
Dynamic load C	138 kN
Static load Co	224 kN
Fatigue load limit Pu	26.5 kN
Limiting speed	1300 rpm
Weight	1.3 kg
d1	78mm
D1	97.4mm
E	90mm
C1+0.2	40.2mm
C2	2.4mm
b	3.2mm
b1	4.5mm
K	3.5mm
r min	1mm
r3r4 min	0.6mm
da min	70mm
das	76mm
Da max	95mm
Ca1 - 0.2	35mm
Ca2 - 0.2	34mm
ra max	0.6mm
rb max	0.6mm
Snap ring	SW100
Din 471	100x3
