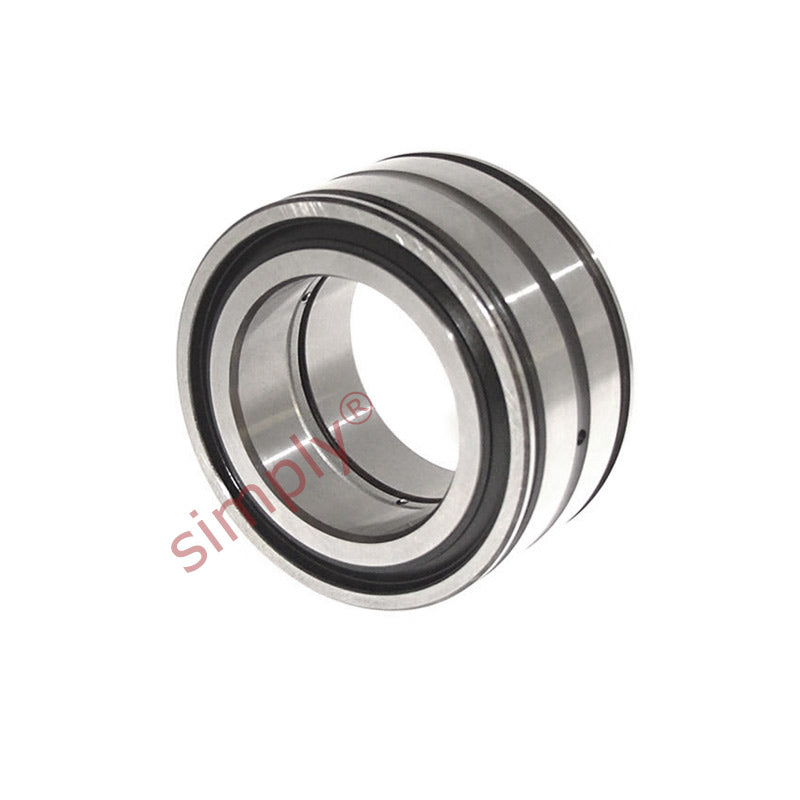

• SKF NNF5018ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 90x140x67mm
1 1

SKU: NNF5018ADA-2LSV-SKF

SKF NNF5018ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 90x140x67mm

SKF NNF5018ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 90x140x67mm
$847.35 ex VAT
$847.35 ex VAT
Sale Sold out

In stock

Price Break
10+ $567.58
19+ $535.69
29+ $529.32
39+ $522.94
49+ $516.56
74+ $510.18
99+ $478.30
199+ $471.92
249+ $465.54
499+ $459.17
999+ $446.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant
Brand / Quality:
SKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
140mm
Width:
67mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 90mm
D 140mm
B 67mm
C 66mm
Dynamic load C 319 kN
Static load Co 550 kN
Fatigue load limit Pu 69.5 kN
Limiting speed 900 rpm
Weight 3.8 kg
d1 109mm
D1 137mm
E 127.5mm
C1+0.2 59.2mm
C2 3.4mm
b 4.2mm
b1 5mm
K 3.5mm
r min 1.5mm
r3r4 min 0.6mm
da min 96mm
das 106mm
Da max 135mm
Ca1 - 0.2 54mm
Ca2 - 0.2 51mm
ra max 1.5mm
rb max 0.6mm
Snap ring SW140
Din 471 140x4
