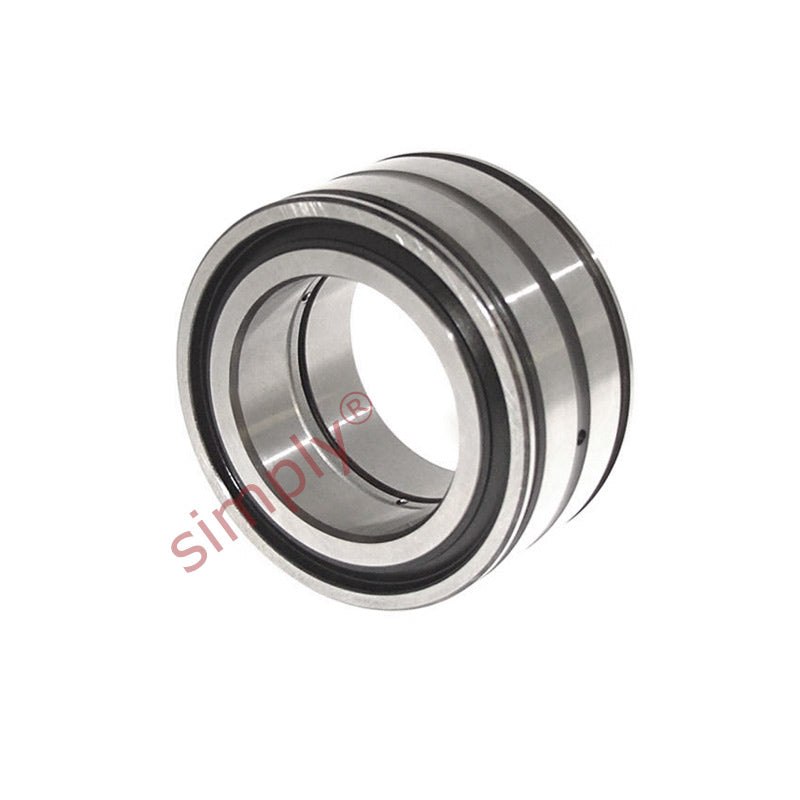

SKF NNF5024ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 120x180x80mm

Name: SKF NNF5024ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 120x180x80mm
Brand: SKF
SKU: NNF5024ADA-2LSV-SKF
Price: 1074.48 USD
Availability: InStock

$1,074.48 ex VAT

Sale Sold out

In stock

Price Break

10+ $719.72

19+ $679.28

29+ $671.19

39+ $663.11

49+ $655.02

74+ $646.93

99+ $606.50

199+ $598.41

249+ $590.33

499+ $582.24

999+ $566.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 180mm
Width:: 80mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	120mm
D	180mm
B	80mm
C	79mm
Dynamic load C	429 kN
Static load Co	750 kN
Fatigue load limit Pu	86.5 kN
Limiting speed	700 rpm
Weight	6.9 kg
d1	141mm
D1	176mm
E	164mm
C1+0.2	71.2mm
C2	3.9mm
b	4.2mm
b1	6mm
K	3.5mm
r min	1.8mm
r3r4 min	0.6mm
da min	127mm
das	138mm
Da max	175mm
Ca1 - 0.2	65mm
Ca2 - 0.2	63mm
ra max	1mm
rb max	0.6mm
Snap ring	SW180
Din 471	180x4
