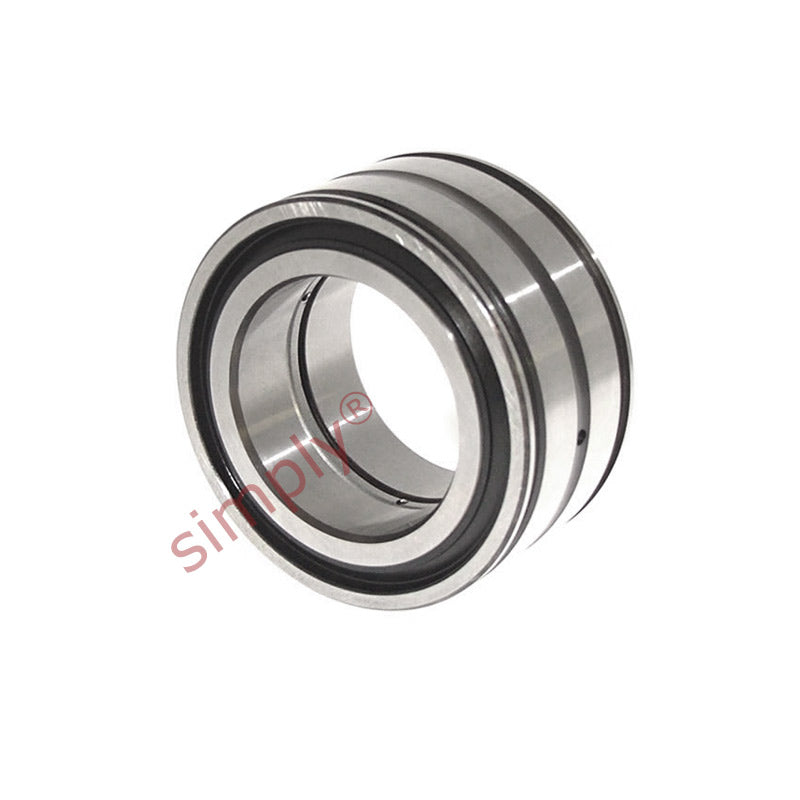

• SKF NNF5028ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 140x210x95mm
1 1

SKU: NNF5028ADA-2LSV-SKF

SKF NNF5028ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 140x210x95mm

SKF NNF5028ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 140x210x95mm
$2,598.23 ex VAT
$2,598.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,740.37
19+ $1,642.60
29+ $1,623.04
39+ $1,603.49
49+ $1,583.93
74+ $1,564.38
99+ $1,466.60
199+ $1,447.05
249+ $1,427.49
499+ $1,407.94
999+ $1,368.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant
Brand / Quality:
SKF - High Quality
Inside Diameter:
140mm
Outside Diameter:
210mm
Width:
95mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 140mm
D 210mm
B 95mm
C 94mm
Dynamic load C 644 kN
Static load Co 1120 kN
Fatigue load limit Pu 127 kN
Limiting speed 600 rpm
Weight 11 kg
d1 167mm
D1 206mm
E 195.5mm
C1+0.2 83.2mm
C2 5.4mm
b 5.2mm
b1 7mm
K 4mm
r min 1.8mm
r3r4 min 0.6mm
da min 147mm
das 162mm
Da max 205mm
Ca1 - 0.2 77mm
Ca2 - 0.2 73mm
ra max 1mm
rb max 0.6mm
Snap ring SW210
Din 471 210x5
