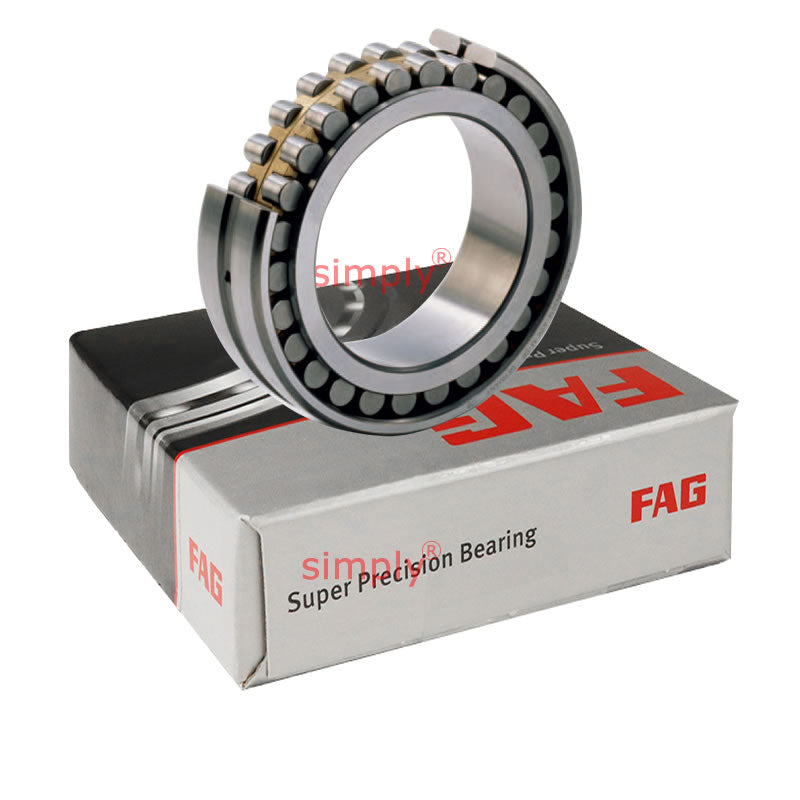

FAG NNU4922SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 110x150x40mm

Name: FAG NNU4922SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 110x150x40mm
Brand: FAG
SKU: NNU4922-S-K-M-SP-FAG
Price: 1916.58 USD
Availability: InStock

$1,916.58 ex VAT

Sale Sold out

In stock

Price Break

3+ $1,283.78

5+ $1,211.66

10+ $1,197.23

25+ $1,182.81

49+ $1,168.38

74+ $1,153.96

99+ $1,081.84

199+ $1,067.41

249+ $1,052.99

499+ $1,038.56

999+ $1,009.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 110mm
Outside Diameter:: 150mm
Width:: 40mm
Seals / Shields:: None
Style:: Super Precision Cylindrical Roller Bearings

Technical

---	Bearings dimensions
d	110mm
D	150mm
B	40mm
r<sub>min</sub>	1.1mm
---	Axial displacement
F	123mm
n<sub>s</sub>	6.5mm
d<sub>s</sub>	3.2mm
Axial dispalcement <sub>s</sub>	2mm
---	Mounting dimensions
d<sub>a</sub> h12	122mm
D<sub>A</sub> H12	139mm
r<sub>a1</sub>	1mm
---	Speeds and loads
C<sub>r</sub>	132000 N
C<sub>or</sub>	270000 N
Speed in grease <sub>ng</sub>	5400 rpm
Speed in oil <sub>ng</sub>	6300 rpm
Weight	2.01kg
