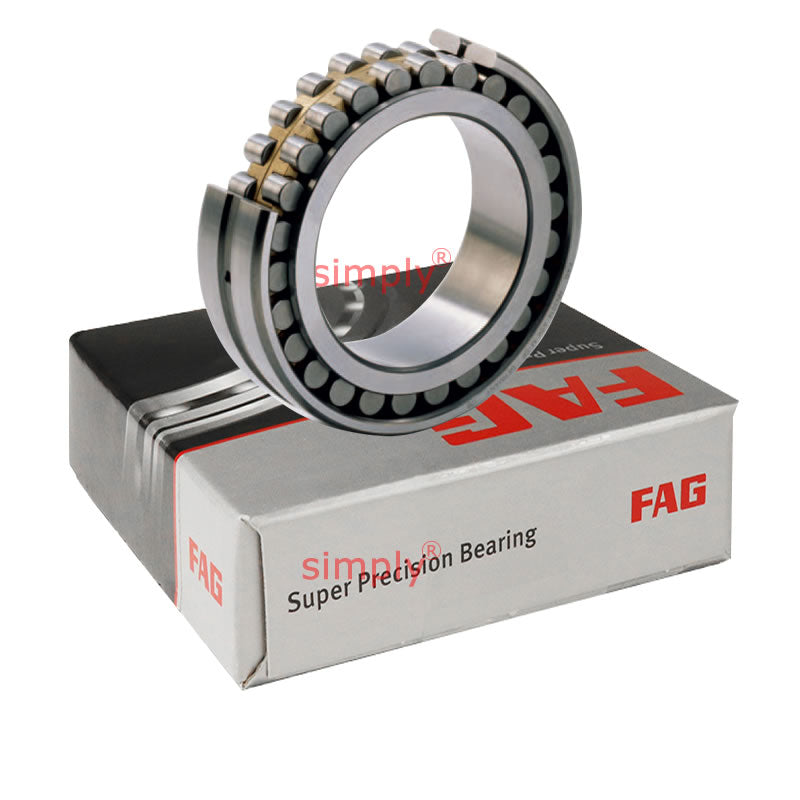

FAG NNU4924SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 120x165x45mm

Name: FAG NNU4924SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 120x165x45mm
Brand: FAG
SKU: NNU4924-S-K-M-SP-FAG
Price: 2086.90 USD
Availability: InStock

$2,086.90 ex VAT

Sale Sold out

In stock

Price Break

3+ $1,397.87

5+ $1,319.34

10+ $1,303.63

25+ $1,287.92

49+ $1,272.22

74+ $1,256.51

99+ $1,177.98

199+ $1,162.27

249+ $1,146.57

499+ $1,130.86

999+ $1,099.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 165mm
Width:: 45mm
Seals / Shields:: None
Style:: Super Precision Cylindrical Roller Bearings

Technical

---	Bearings dimensions
d	120mm
D	165mm
B	45mm
r<sub>min</sub>	1.1mm
---	Axial displacement
F	134.5mm
n<sub>s</sub>	6.5mm
d<sub>s</sub>	3.2mm
Axial dispalcement <sub>s</sub>	2.3mm
---	Mounting dimensions
d<sub>a</sub> h12	133.4mm
D<sub>A</sub> H12	154.5mm
r<sub>a1</sub>	1mm
---	Speeds and loads
C<sub>r</sub>	175000 N
C<sub>or</sub>	340000 N
Speed in grease <sub>ng</sub>	4750 rpm
Speed in oil <sub>ng</sub>	5600 rpm
Weight	2.78kg
