SKU: NNU4928-S-K-M-SP-FAG

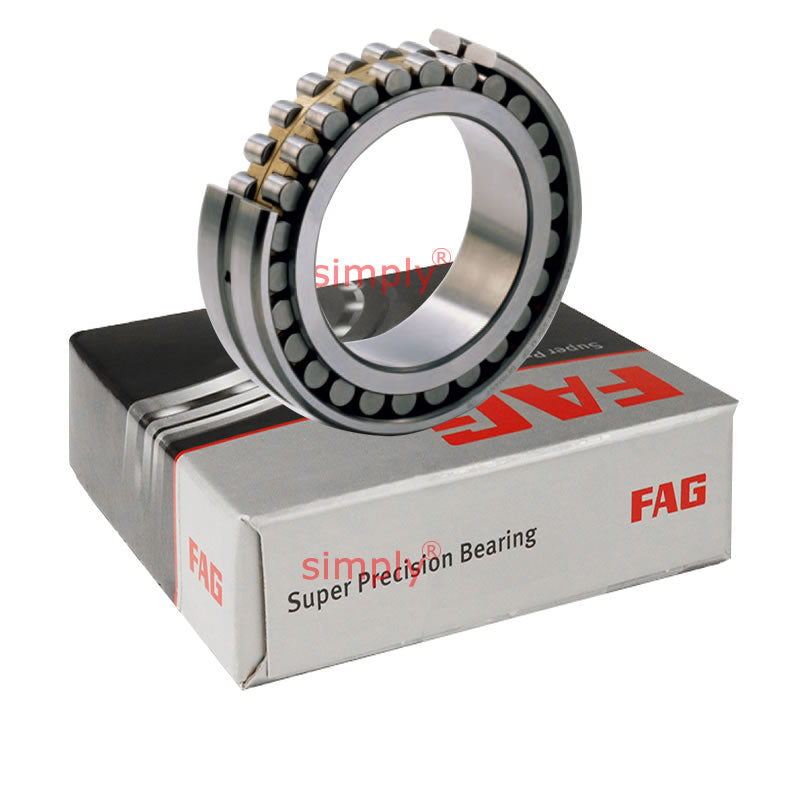

FAG NNU4928SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 140x190x50mm

Name: FAG NNU4928SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 140x190x50mm
Brand: FAG
SKU: NNU4928-S-K-M-SP-FAG
Price: 2795.38 USD
Availability: InStock

$2,795.38 ex VAT

Sale Sold out

In stock

Price Break

3+ $1,872.43

5+ $1,767.23

10+ $1,746.20

25+ $1,725.16

49+ $1,704.12

74+ $1,683.08

99+ $1,577.89

199+ $1,556.85

249+ $1,535.81

499+ $1,514.77

999+ $1,472.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 140mm
Outside Diameter:: 190mm
Width:: 50mm
Seals / Shields:: None
Style:: Super Precision Cylindrical Roller Bearings

Technical

---	Bearings dimensions
d	140mm
D	190mm
B	50mm
r<sub>min</sub>	1.5mm
---	Axial displacement
F	156mm
n<sub>s</sub>	6.5mm
d<sub>s</sub>	3.2mm
Axial dispalcement <sub>s</sub>	2.7mm
---	Mounting dimensions
d<sub>a</sub> h12	155.1mm
D<sub>A</sub> H12	176mm
r<sub>a1</sub>	1.5mm
---	Speeds and loads
C<sub>r</sub>	190000 N
C<sub>or</sub>	400000 N
Speed in grease <sub>ng</sub>	4250 rpm
Speed in oil <sub>ng</sub>	5000 rpm
Weight	4.04kg
