SKU: NNU4934-S-K-M-SP-FAG

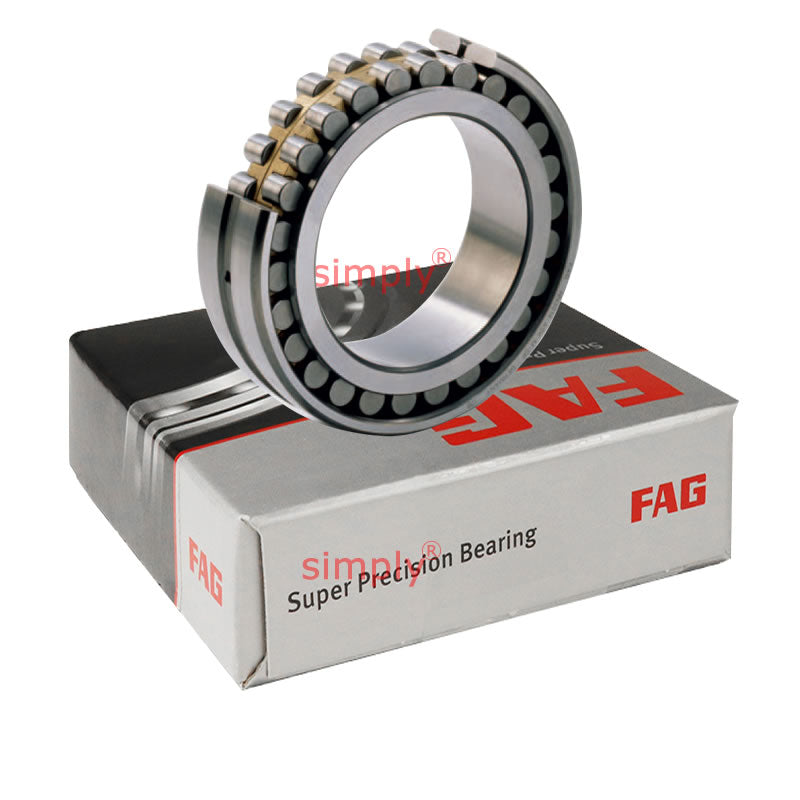

FAG NNU4934SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 170x230x60mm

Name: FAG NNU4934SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 170x230x60mm
Brand: FAG
SKU: NNU4934-S-K-M-SP-FAG
Price: 3559.95 USD
Availability: InStock

$3,559.95 ex VAT

Sale Sold out

In stock

Price Break

3+ $2,384.56

5+ $2,250.60

10+ $2,223.80

25+ $2,197.01

49+ $2,170.22

74+ $2,143.42

99+ $2,009.46

199+ $1,982.67

249+ $1,955.87

499+ $1,929.08

999+ $1,875.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 170mm
Outside Diameter:: 230mm
Width:: 60mm
Seals / Shields:: None
Style:: Super Precision Cylindrical Roller Bearings

Technical

---	Bearings dimensions
d	170mm
D	230mm
B	60mm
r<sub>min</sub>	2mm
---	Axial displacement
F	188.5mm
n<sub>s</sub>	6.5mm
d<sub>s</sub>	3.2mm
Axial dispalcement <sub>s</sub>	2.7mm
---	Mounting dimensions
d<sub>a</sub> h12	187.2mm
D<sub>A</sub> H12	216.5mm
r<sub>a1</sub>	2mm
---	Speeds and loads
C<sub>r</sub>	340000 N
C<sub>or</sub>	700000 N
Speed in grease <sub>ng</sub>	3300 rpm
Speed in oil <sub>ng</sub>	3850 rpm
Weight	6.9kg
