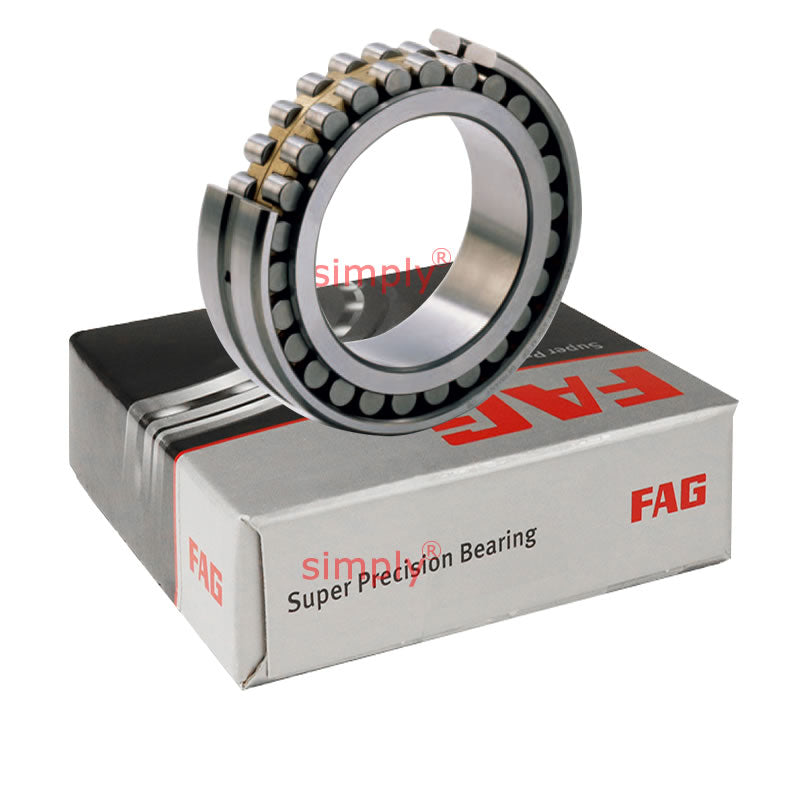

• FAG NNU4938SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 190x260x69mm
  • FAG
1 2

SKU: NNU4938-S-K-M-SP-FAG

FAG NNU4938SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 190x260x69mm

FAG NNU4938SKMSP Super Precision Double Row Cylindrical Roller Spindle Bearing 190x260x69mm
$4,759.42 ex VAT
$4,759.42 ex VAT
Sale Sold out

In stock

Price Break
3+ $3,188.00
5+ $3,008.90
10+ $2,973.08
25+ $2,937.26
49+ $2,901.44
74+ $2,865.62
99+ $2,686.52
199+ $2,650.69
249+ $2,614.87
499+ $2,579.05
999+ $2,507.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
190mm
Outside Diameter:
260mm
Width:
69mm
Seals / Shields:
None
Style:
Super Precision Cylindrical Roller Bearings
Technical
--- Bearings dimensions
d 190mm
D 260mm
B 69mm
r<sub>min</sub> 2mm
--- Axial displacement
F 212mm
n<sub>s</sub> 9.5mm
d<sub>s</sub> 4.8mm
Axial dispalcement <sub>s</sub> 3.2mm
--- Mounting dimensions
d<sub>a</sub> h12 210.5mm
D<sub>A</sub> H12 242mm
r<sub>a1</sub> 2mm
--- Speeds and loads
C<sub>r</sub> 410000 N
C<sub>or</sub> 880000 N
Speed in grease <sub>ng</sub> 2900 rpm
Speed in oil <sub>ng</sub> 3450 rpm
Weight 10.6kg
