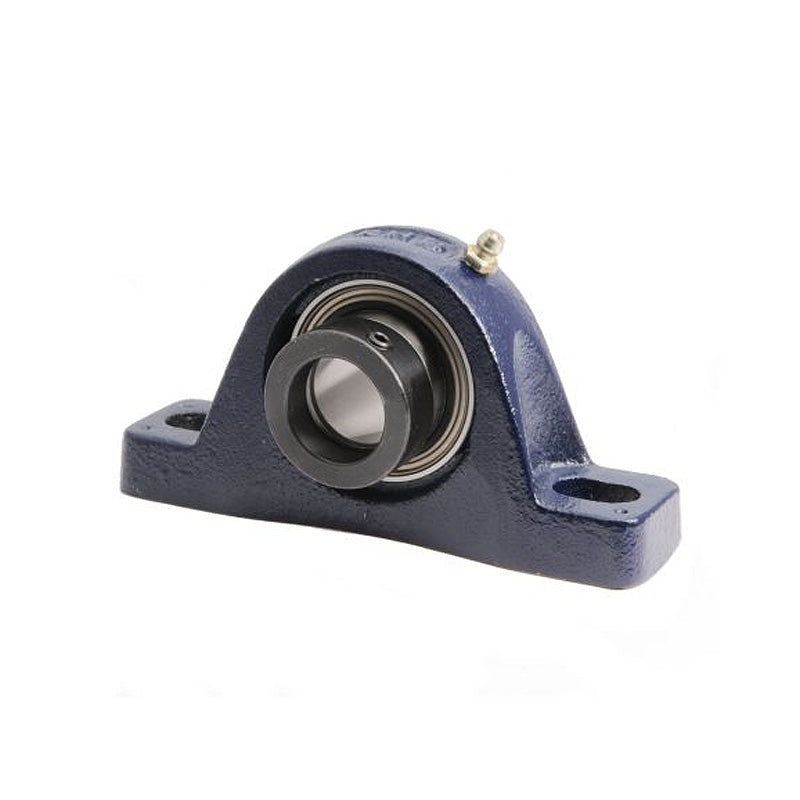

• RHP NP1-3/16EC Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Eccentric Collar Flat Back Insert - Allow 2-3 Days
1 1

SKU: NP1.3/16EC-RHP

RHP NP1-3/16EC Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Eccentric Collar Flat Back Insert - Allow 2-3 Days

RHP NP1-3/16EC Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Eccentric Collar Flat Back Insert - Allow 2-3 Days
$103.03 ex VAT
$103.03 ex VAT
Sale Sold out

In stock

Price Break
10+ $76.75
20+ $73.65
30+ $72.10
40+ $69.78
50+ $68.23
75+ $64.35
100+ $54.27
200+ $0.00
250+ $0.00
500+ $0.00
1000+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP NP-EC Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar / grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
NP
Bolt Hole Centres:
4.272-5.098 inch
Technical
Bore 1-3/16 inch
L 6.319 inch
H 1.689 inch
H1 0.697 inch
H2 3.256 inch
J max 5.098 inch
J min 4.272 inch
G 0.5 inch
A 1.634 inch
A1 1.083 inch
B2 1.405 inch
s1 0.356 inch
d2 1.75 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-3/16ECG+insonly">1230-1-3/16ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
